Available for full-size sheet production
The SteelTrak is available in ST210 and ST250 configurations. The larger ST250 model can process standard 2.4m x 1.2m sheets in a single pass, making it well suited to businesses working with full-size composite and display boards.
No power, extraction or programming required
The SteelTrak operates without an electrical supply, compressed air or computer software. It can be installed and used without specialist programming or extraction equipment, providing a straightforward solution for workshops that need reliable cutting throughout the day.
Suitable for a wide range of rigid materials
Alongside composite panel and foamboard, the SteelTrak can process corrugated plastic, cardboard, mountboard, MDF and other commonly used display materials. Cast acrylic can also be scored and snapped, while optional accessories extend the system’s capability to glass and aluminium sheet.
Optional V-groove capability
The optional V-groove tool allows operators to create accurate grooves in aluminium composite panel and PVC foamboard. These grooves can be used to produce folded sign trays, fabricated boxes, self-standing displays and three-dimensional exhibition structures.
C2 composite cutting head included
The supplied C2 cutting head can cut aluminium composite panel and steel composite panel up to 3mm thick in a single pass. Its manual cutting action creates no sparks or airborne dust, providing a cleaner alternative to powered saws and routers for everyday composite panel production.

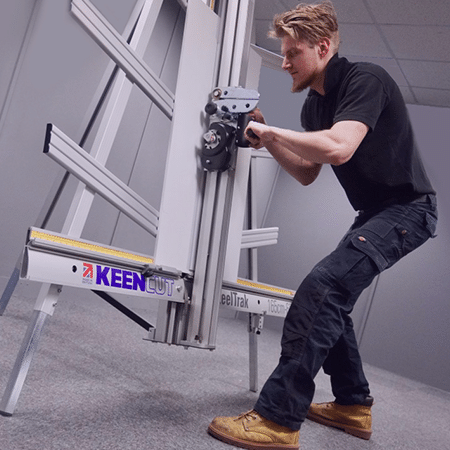

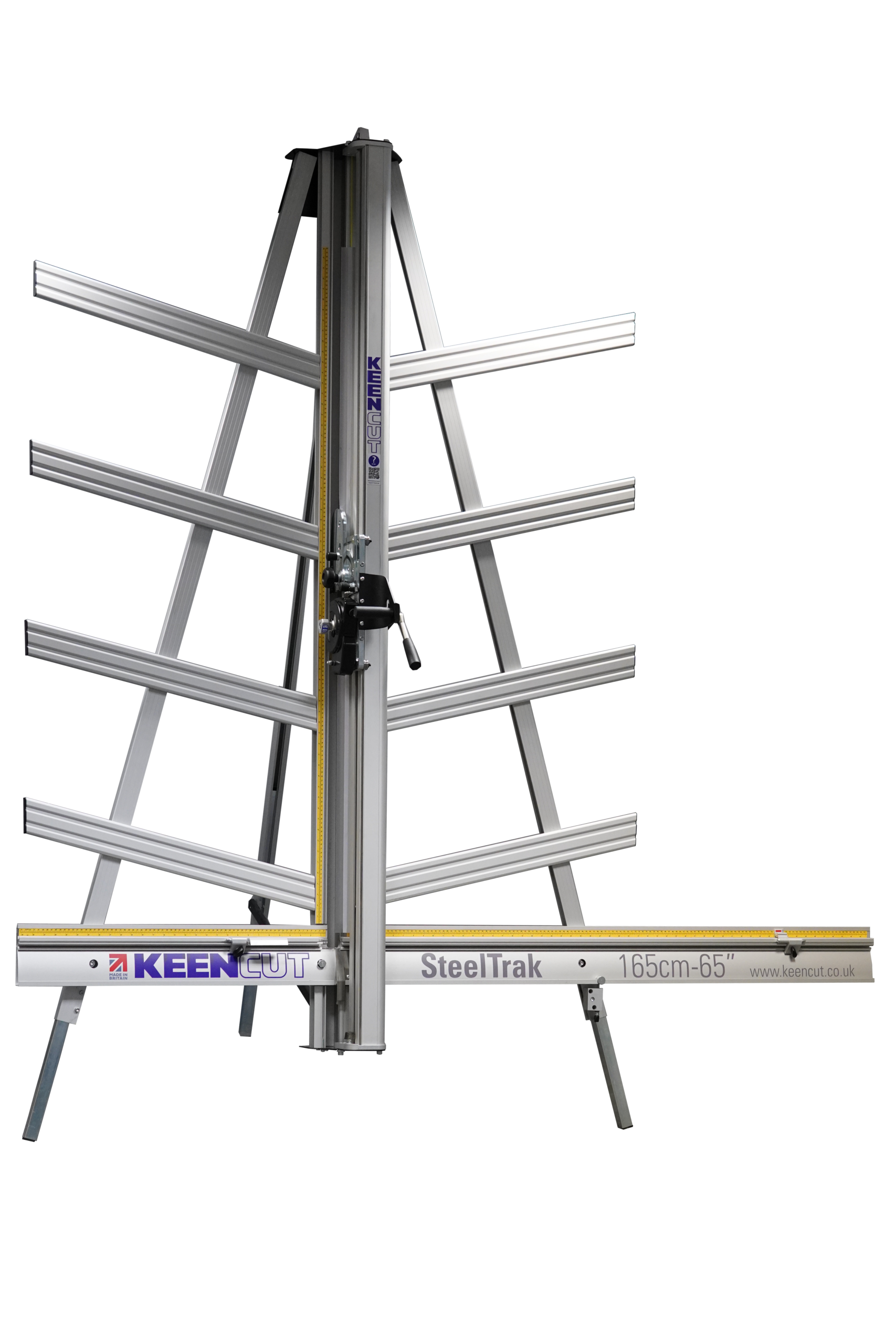

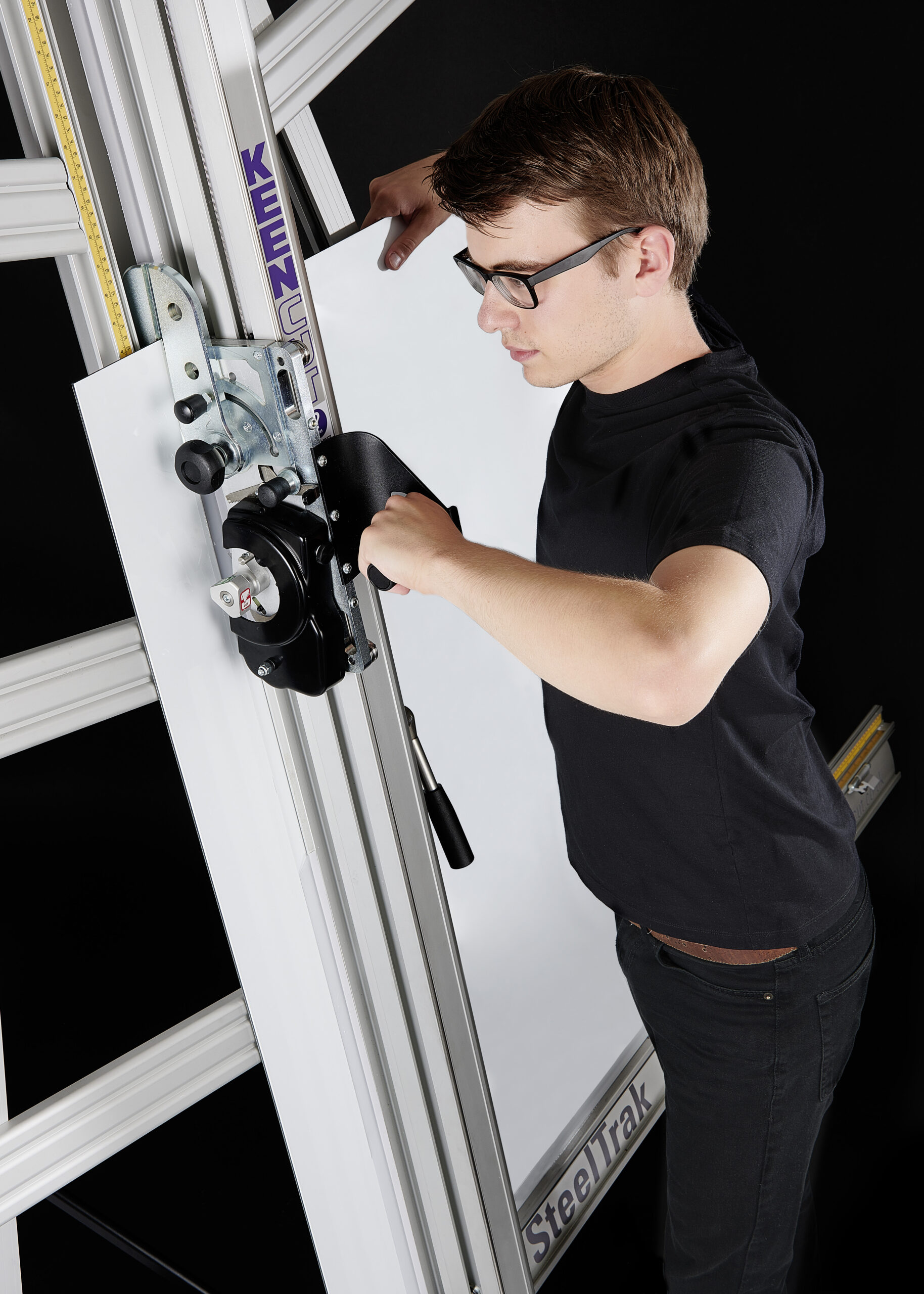

Fast, accurate cutting for rigid and semi-rigid sheet materials
The Keencut SteelTrak is a heavy-duty vertical cutting system designed for busy sign-making, display and print-finishing environments. It cuts and finishes a wide range of rigid and semi-rigid materials in a single action, helping businesses improve production speed while achieving clean, accurate results.
Its upright design takes up minimal workshop space and allows large boards to be handled by a single operator. With no power, programming or specialist extraction required, the SteelTrak provides a practical cutting solution that can be used throughout the working day.
Cut and finish in one action
The SteelTrak cuts materials cleanly without producing dust, scrapings or dangerous sparks. Many materials can be used immediately after cutting, reducing the need for additional edge finishing and helping jobs move through production more quickly.
Permanently mounted cutting and scoring blades are ready for immediate use and follow the same cutting line, making it easy to switch between different applications.
The SteelTrak cuts materials cleanly without producing dust, scrapings or dangerous sparks. Many materials can be used immediately after cutting, reducing the need for additional edge finishing and helping jobs move through production more quickly.
Permanently mounted cutting and scoring blades are ready for immediate use and follow the same cutting line, making it easy to switch between different applications.

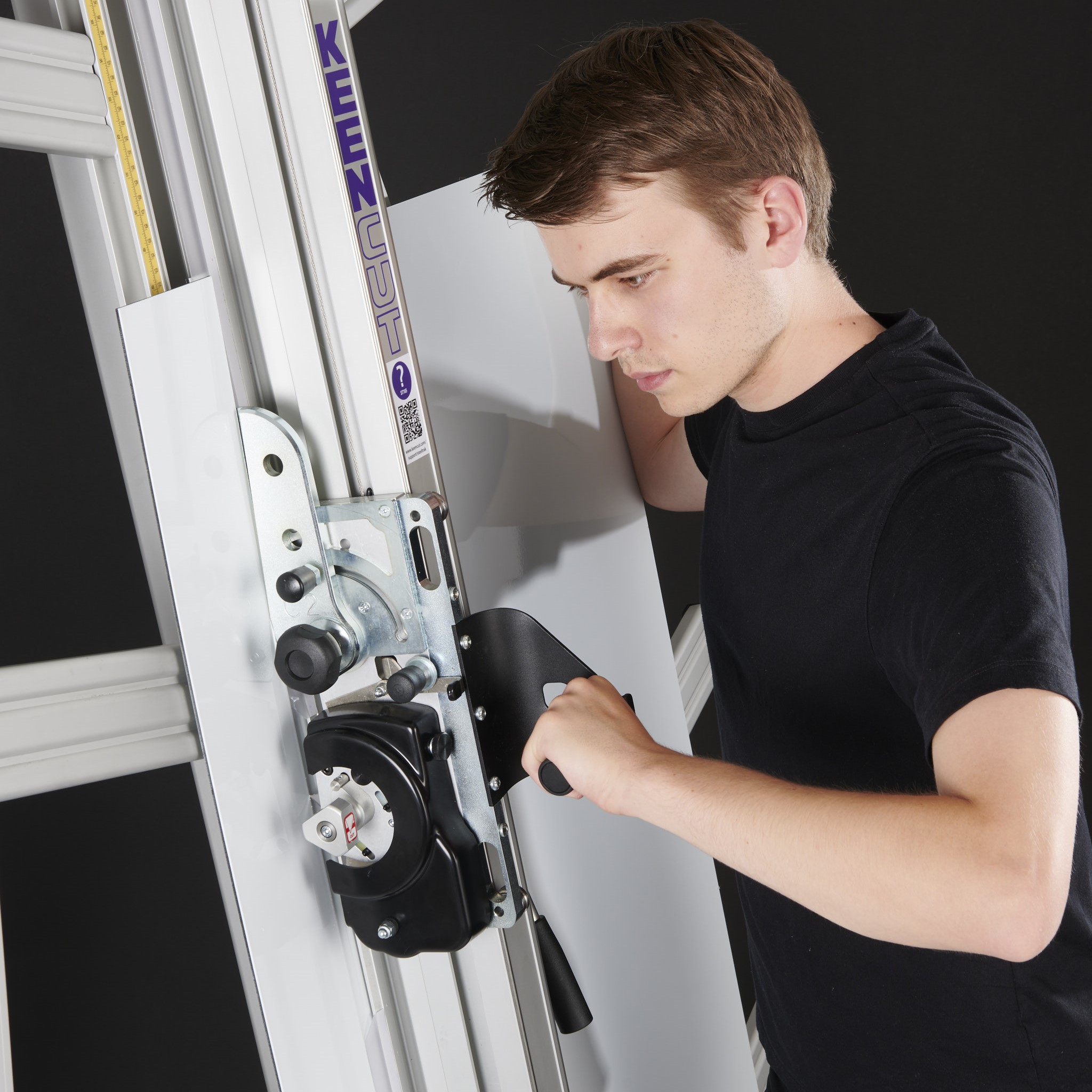

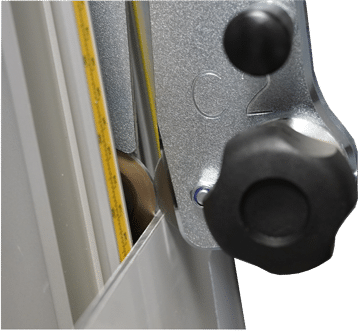

C2 composite cutting head included
The SteelTrak is supplied with Keencut’s C2 composite cutting head as standard. It can cut aluminium composite panel and steel composite panel up to 3mm thick in a single pass without creating sparks or airborne dust.
The cutting action also helps reduce curvature along the finished edge, making panels easier to use for flatbed printing and helping minimise wasted material.

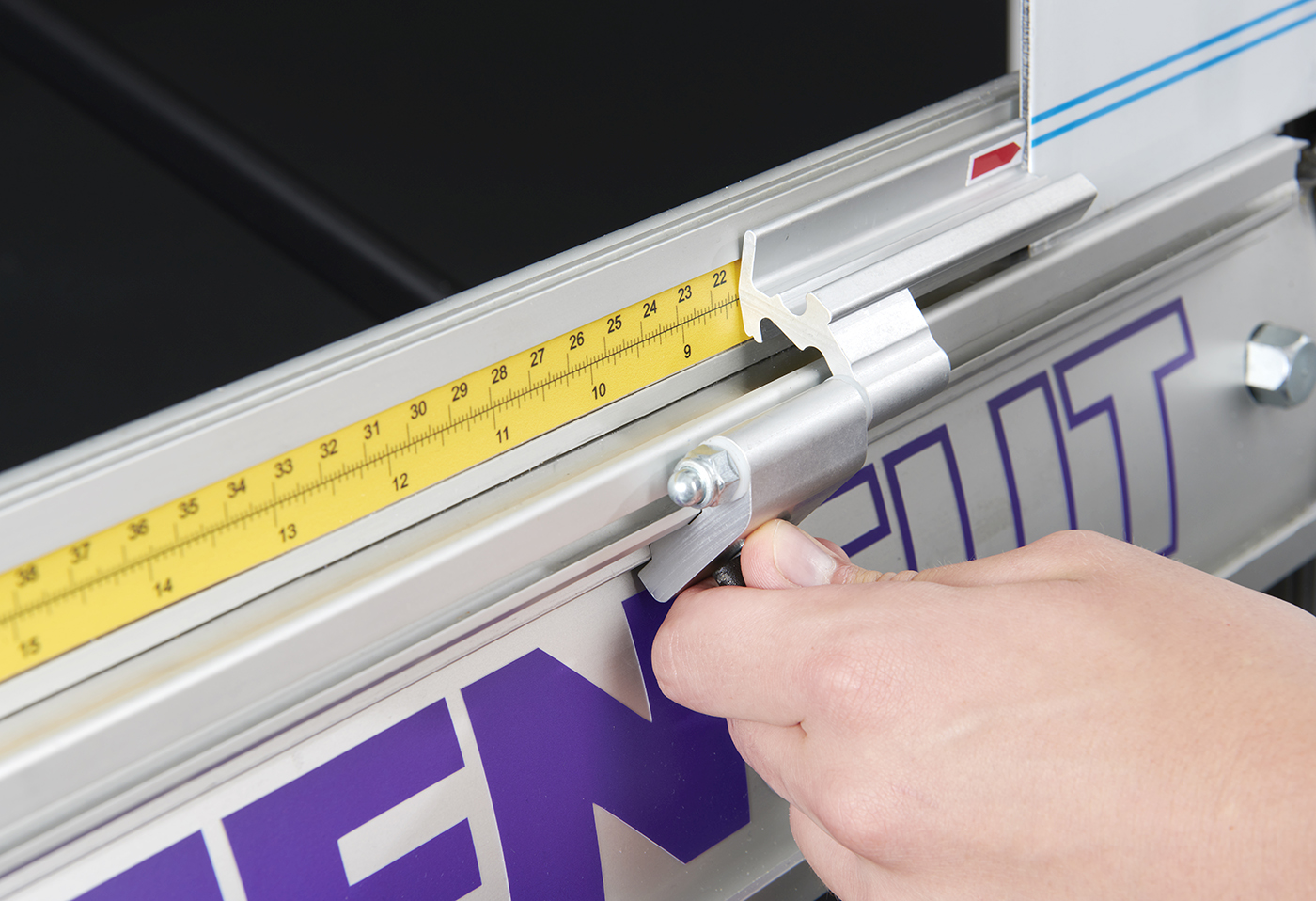

Accurate material positioning
A pressure-sensitive clamp can be applied lightly while the board is positioned and then increased to hold the material securely during cutting. The clamping system is designed to protect printed surfaces and delicate boards from marking or damage.
An integrated sightline strip shows the exact cutting position, while all compatible blades follow the same line for consistent alignment across different materials and applications.
Wide material compatibility
The SteelTrak can cut aluminium composite panel and steel composite panel up to 3mm thick. It can also handle PVC foamboard, corrugated plastic, corrugated cardboard and foam-centred board up to 13mm thick.
Additional capabilities include MDF up to 3mm and mountboard up to 6mm. Cast acrylic up to 3mm can be scored and snapped, while glass up to 6mm can be processed using the optional glass cutting kit.
An optional aluminium cutting head is available for cutting aluminium sheet up to 1mm thick.

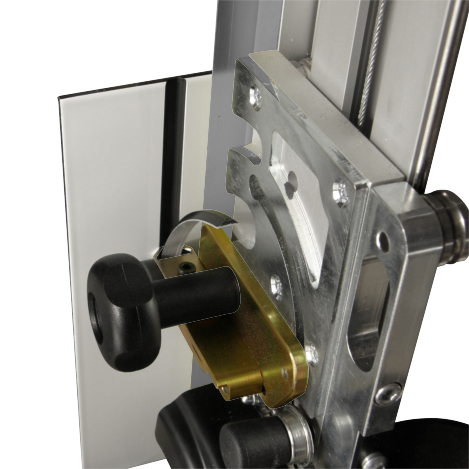

Create sign trays and fabricated displays
The optional V-groove tool allows the SteelTrak to cut accurate grooves into aluminium composite panel and PVC foamboard. This makes it possible to create folded sign trays, self-standing displays, exhibition structures and fabricated boxes.
The V-groove tool attaches directly to the SteelTrak cutting head and can be fitted within seconds when required.
