See the latest print and finishing technology up close and personal. At our Altham demonstration centre, you’ll get hands-on with leading wide-format printers, cutters, and media.
Whether you're exploring new hardware or testing specific materials, our expert team will guide you through a tailored session that’s focused on your business needs.
If you want to enquire about this product, please fill in the form and we will get back to you as soon as possible.
Switch seamlessly between roll media and rigid boards from one versatile production platform, helping expand application opportunities without changing machines.
Keep production moving with high-speed output designed to support demanding commercial print environments.
Print up to five layers to produce striking double-sided graphics, window displays and specialist applications.
Next-generation UV inks designed for a more comfortable working environment with approximately 30% less odour.
Track machine performance, ink usage and alerts remotely with Mimaki’s integrated monitoring tools.

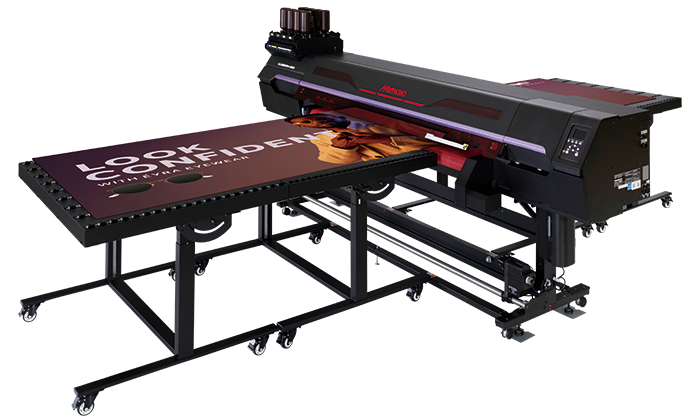

The Mimaki UJ330H-160 brings added flexibility to UV print production, giving businesses the ability to handle both roll media and rigid substrates on a single platform. From flexible graphics to direct-to-board applications, it supports a wide range of signage, display and interior work without the need for multiple machines.
With support for rigid materials up to 50.8 mm thick and roll media up to 1,620 mm wide, the Mimaki UJ330H-160 is built for print environments where versatility matters. It allows you to move between different job types with ease, helping to keep production efficient and responsive.
Built on Mimaki’s proven 330 Series platform, it delivers consistent, high-quality output with smooth gradations and strong colour density. A belt-driven transport system, combined with UV-LED curing, ensures stable media handling across a variety of substrates, including more sensitive materials.
Designed with practicality in mind, the Mimaki UJ330H-160 features a compact footprint, making it suitable for spaces where traditional flatbed systems may not fit. Switching between roll and rigid workflows is quick and straightforward, helping you expand your capability without adding unnecessary complexity.
Precision output with creative UV capability

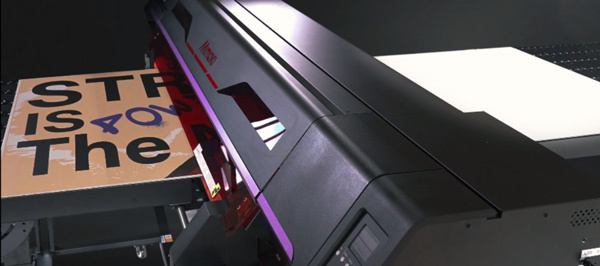

At the core of the Mimaki UJ330H-160 is the advanced 330 Series print platform, delivering sharp detail, smooth tonal transitions and strong colour density across both rigid and flexible materials.
Its UV print capability opens up additional creative opportunities. High-opacity white ink allows for vibrant results on coloured and transparent substrates, while clear ink enables gloss, matte and textured finishes for more premium applications. Multi-layer printing of up to five layers supports more complex output, including double-sided window graphics and tactile effects.
UV-LED curing ensures prints are instantly dry and ready for finishing, helping to reduce turnaround times and keep production moving. The result is consistent, high-quality output across a wide range of demanding applications
Reliable workflow with next-generation UV inks

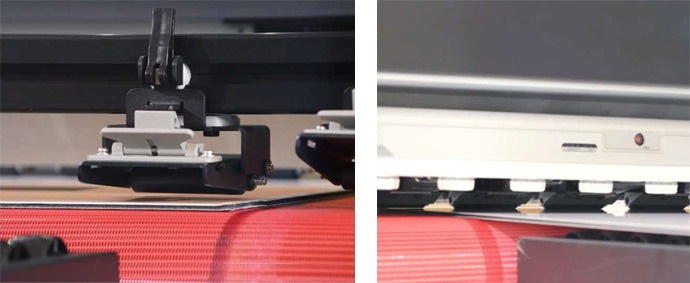

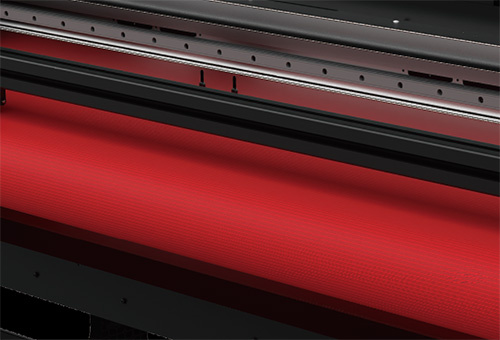

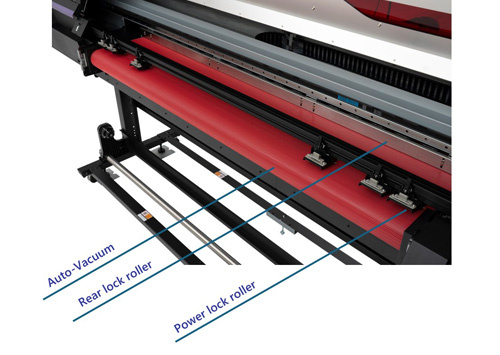

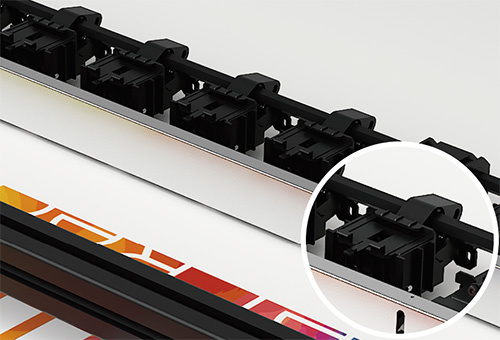

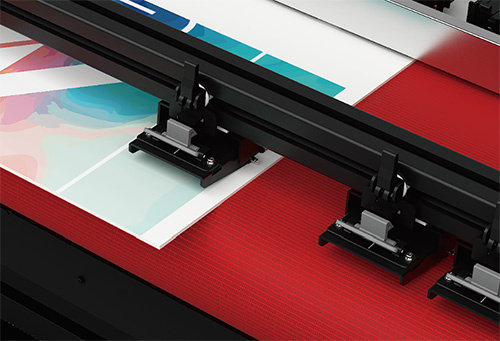

The Mimaki UJ330H-160 has been developed to support smooth, predictable production across both rigid boards and roll media. A belt-driven conveyor system ensures stable handling of rigid substrates, while multi-zone vacuum control keeps materials securely positioned throughout the print process.
For roll media applications, the integrated handling system allows for quick changeover between production modes. This makes it easier to move between signage, display graphics and direct-to-board work without slowing down workflow.
New ELS series UV inks further enhance usability in day-to-day production. These formulations are SVHC- and CMR-free and generate approximately 30% less odour, helping create a more comfortable working environment while maintaining the durability and colour performance expected from Mimaki UV printing.
Combined with a compact footprint and straightforward installation, including the ability to pass through a standard doorway, the Mimaki UJ330H-160 offers a practical and efficient route into UV hybrid production.
The Mimaki UJ330H-160 gives print businesses the freedom to take on more applications, reduce outsourcing and produce premium-quality output across both roll and rigid materials.
From signage and retail graphics to window films, décor and specialist print, the UJ330H-160 offers the versatility and reliability needed to grow your production capabilities.
Want to see the Mimaki UJ330H-160 in action? Contact Soyang Hardware to arrange a live demonstration today.
| Print Head | On-demand piezo head (2 staggered layout) | |
| Print resolution | Y : 600, 1,200 dpi, X : 600, 900, 1,200, 1,800 dpi | |
| Head gap | Automatic nozzle-to-media distance adjustment | |
| 1.5 mm to 3.0 mm (in 0.1 mm increments), automatically adjusted by belt elevation. | ||
| Ink | Type/Color | ELS-170: C,M,Y,K,Lc,Lm,W,Cl |
| Capacity | 1L bottle | |
| Maximum print width | 1,610 mm (63.4") | |
| Media | Supported width | 210 ~ 1,620 mm (8.3 ~ 63.8") |
| (Roll) | Roll diameter | φ250 mm (9.8") or less |
| Roll weight | 45 kg (99 lb) or less | |
| Core diameter | 2 inch / 3 inch | |
| Take-Up Torque Limiter | Standard Setting: Low (adjustable from Low to High) | |
| Media | Supported width | 210 ~ 1,620 mm (8.3 ~ 63.8") |
| (Rigid) | Supported length | 280 mm ~ 2,500 mm (11" ~ 98.4") |
| Control allows up to 3,100 mm (122.0"), Print length: up to 3,090 mm (121.7") *2 | ||
| Thickness | 50.8 mm (2") or less | |
| Weight | 25 kg (55.1 lb) or less (7 kg (15.4 lb)/m² or less) | |
| Automatic Adjustment | DAS2 Equipped | |
| Interface | Ethernet 1000 BASE-T (Recommended), USB2.0 Hi-Speed | |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, | |
| CE Marking (EMC, Low voltage, Machinery directive, and RoHS), | ||
| CB, REACH, Energy Star, RCM, EAC, KC, UKCA | ||
| Power supply | Single phase AC100-120V±10% /8A or Single phase AC200-240V±10% /4A, 50/60±1Hz x2 | |
| Power consumption | 800W x2 (Maximum), Inlet1 400W / Inlet2 500W (Average running), 4.5W or less x2 (Standby) | |
| Operational environment | Temperature: 20–30 °C (68–86 °F) | |
| Humidity: 35–65% Rh (Non condensing) | ||
| Recommended temperature: 20–25 °C (68–77 °F) | ||
| Dust level: General office level | ||
| Dimensions (W×D×H) *3 | Main unit: 3,225 x 785 x 1,420 mm (126.9 x 30.9 x 55.9") | |
| Main unit + 1 Roller table set: | ||
| 3,225 x 2,664 x 1,420 mm (126.9 x 104.9 x 55.9") | ||
| Main unit + 2 Roller table set: | ||
| 3,225 x 4,712 x 1,420 mm (126.9 x 185.5 x 55.9") | ||
| Weight *3 | Main unit: 386 kg (851 lb) | |
| Main unit + 1 Roller table set: 498 kg (1,097.9 lb) | ||
| Main unit + 2 Roller table set: 610 kg (1,344.8 lb) | ||
| *2 Operation beyond the specified supported range is possible, but not guaranteed. *3 One set of Roller table contains two units. |
