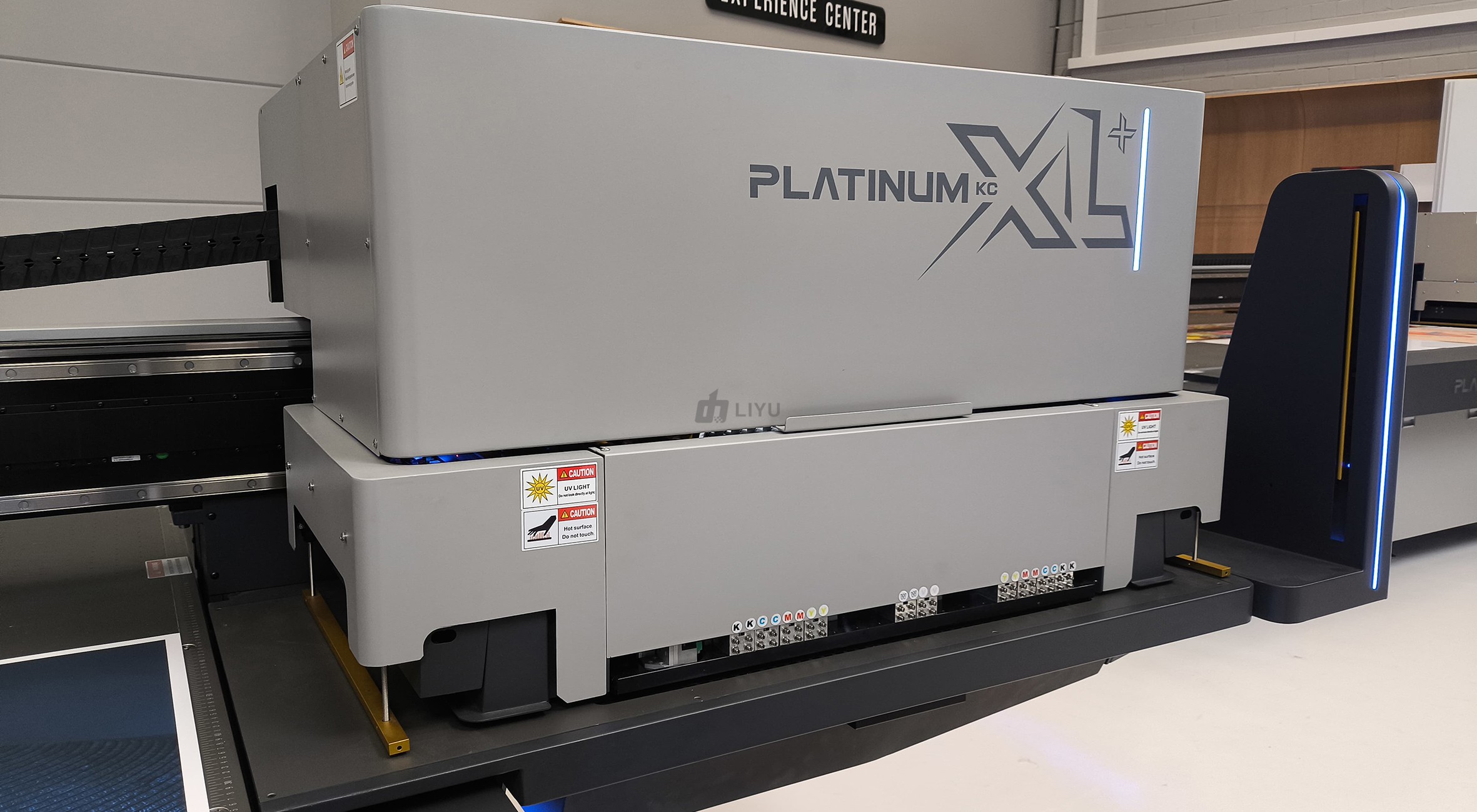

Platinum KCXL+UV Flatbed
Specifications
- UV-LED curing system
- Print resolutions up to 2400 dpi
- Print speeds up to 400 m²/h
- Supports media up to 100 mm thick
- Automatic material height measurement
- Dual vacuum motors
Book a Demo
See the latest print and finishing technology up close and personal. At our Altham demonstration centre, you’ll get hands-on with leading wide-format printers, cutters, and media.
Whether you're exploring new hardware or testing specific materials, our expert team will guide you through a tailored session that’s focused on your business needs.
Enquire about this product
If you want to enquire about this product, please fill in the form and we will get back to you as soon as possible.
-
1
Automatic material height measurement
-
2
Print speeds up to 400 m²/h
-
3

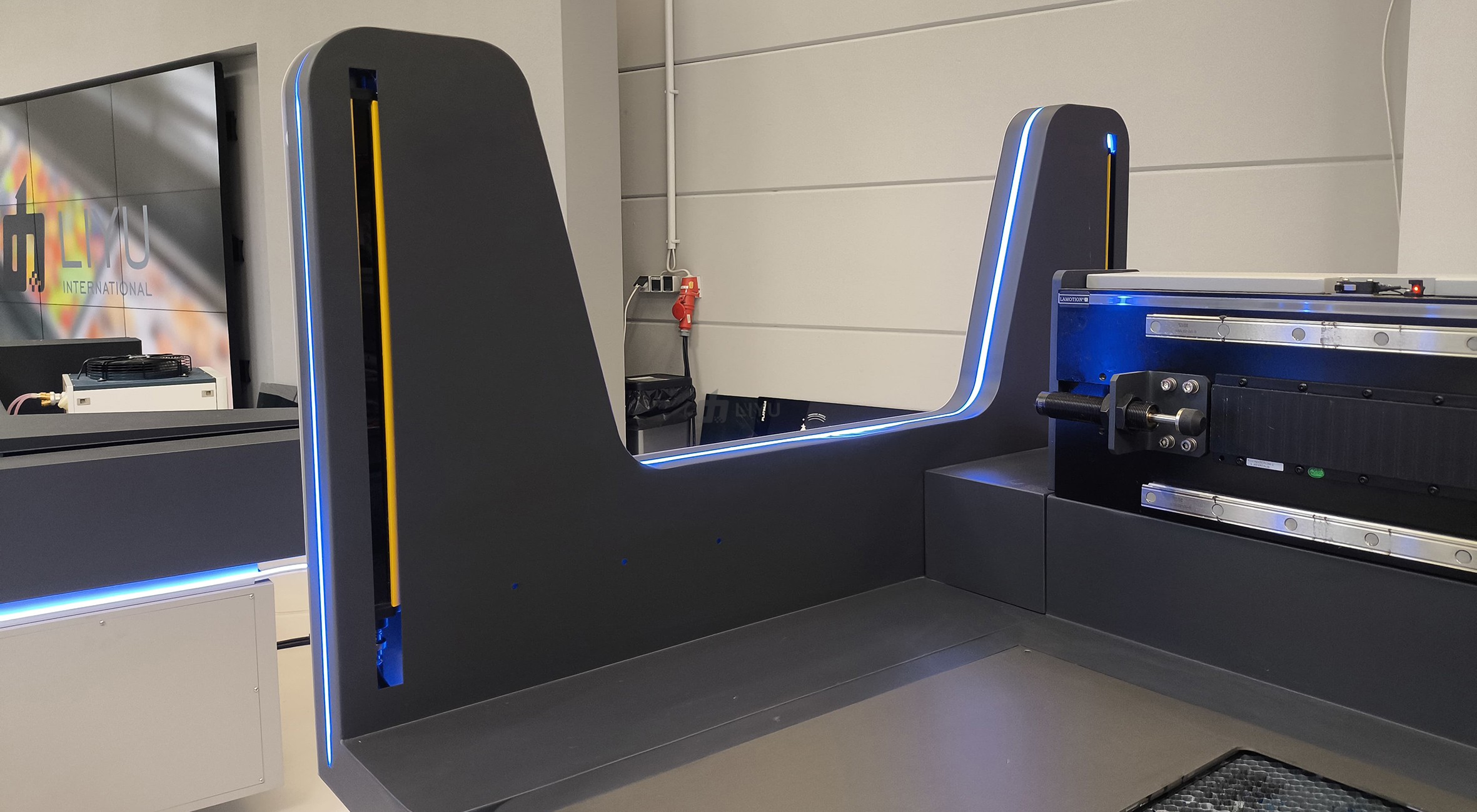

Collision protection and safety sensors
-
4
4-8 zone vacuum system
High-Performance UV Flatbed Printing Built for Demanding Production
The Platinum KCXL+ Flatbed UV Printer has been developed for print businesses that need speed, precision and dependable day-to-day production across a wide range of rigid applications.
Combining advanced UV-LED technology with high-resolution output and industrial-level build quality, the KCXL+ delivers vibrant colour, sharp detail and reliable production performance on materials up to 100 mm thick.
Designed to support modern print environments, the Platinum KCXL+ helps users confidently produce everything from signage and display graphics through to retail, interior décor, industrial applications and specialist print work.
Built for Precision and Productivity
Powered by Ricoh GEN6 printheads and capable of resolutions up to 2400 dpi, the Platinum KCXL+ produces smooth gradients, fine text and crisp image quality across both short-run and high-volume production.
Its advanced flatbed system includes dual vacuum motors, multi-zone vacuum control and material support pins to ensure stable and accurate substrate positioning throughout the print process.
Automatic material height measurement helps reduce setup time while improving consistency across different media types, allowing operators to move efficiently between jobs with minimal interruption. Bidirectional printing further enhances productivity, helping maximise throughput without compromising print quality
Advanced UV-LED Printing Technology
The Platinum KCXL+ uses UV-LED curing technology to deliver durable, instantly cured prints across a wide range of rigid and specialist substrates.
Supporting CMYK, White, Light Cyan, Light Magenta and Varnish configurations, the printer offers the flexibility required for high-impact graphics, layered effects, textured finishes and premium print applications.
With a 5 pl droplet size, the machine is capable of producing smooth tonal transitions, detailed imagery and consistent colour reproduction across demanding production work.
Engineered for Reliable Operation
Designed with production environments in mind, the Platinum KCXL+ includes a range of features that support stable and reliable operation throughout the working day.
Collision detection and integrated safety sensors help protect both the machine and operator, while the robust vacuum system maintains accurate media positioning during print production.
