Compact tabletop design
The T3 Extreme provides professional hot wedge welding within a compact footprint, making it suitable for smaller workshops or businesses where production space is limited. Its tabletop format allows it to be installed on a suitable workbench without requiring a large dedicated finishing area.
Complete banner finishing in-house
Produce the essential seams required for professional banner and sign finishing without sending work to an external supplier. Bringing production in-house can provide greater control over quality, scheduling and turnaround times while reducing delays between printing and finishing.
Welding speeds up to 8 metres per minute
The T3 Extreme can weld compatible materials at speeds of up to 8 metres per minute, depending on the application, seam width and material being processed. This helps businesses finish repeat banner work and longer production runs more efficiently.
Multiple seam configurations
Create standard hems, overlap seams, pockets, rope hems, fin seams, extrusion beading, reinforcement webbing and silicone edge graphics using one compact machine. This flexibility allows the T3 Extreme to support a wider range of signage, display and textile applicatio
Compact hot wedge welding for professional banner finishing

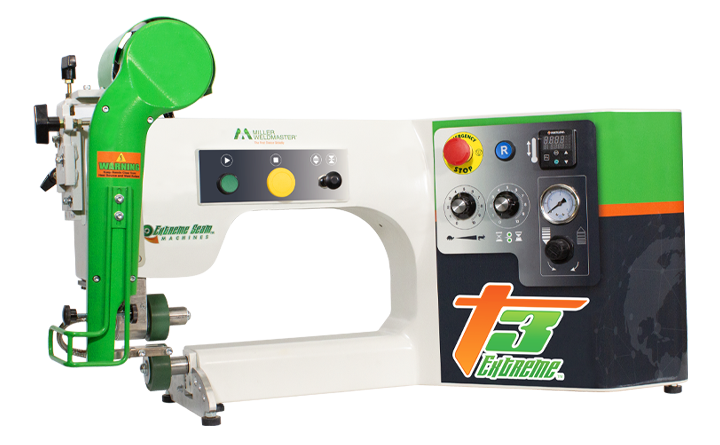

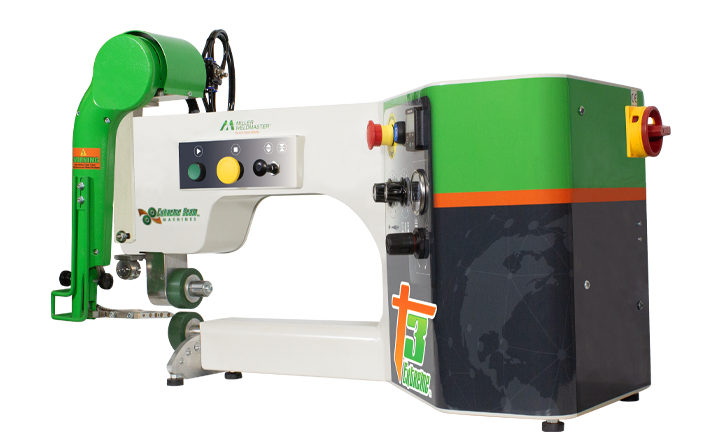

The Miller Weldmaster T3 Extreme is a compact hot wedge welding machine developed for sign makers, print businesses and smaller production environments that want to bring banner finishing in-house.

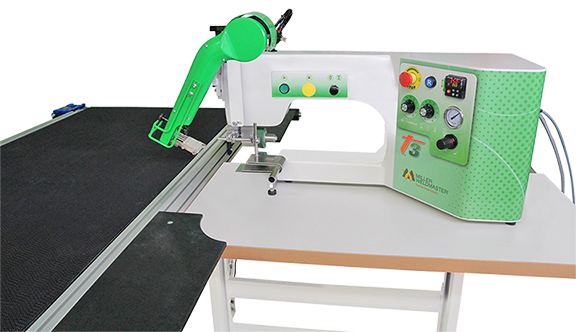

Designed to sit on a workbench, the T3 Extreme delivers professional, repeatable seams without taking up the space required by a larger industrial welding system. Its straightforward controls and adjustable guides make it suitable for producing banners, signs, covers, awnings and other flexible textile products.
Professional finishing in a compact footprint
The tabletop design makes the T3 Extreme a practical option for businesses with limited production space. Despite its compact dimensions, the machine can complete the key seam types required for everyday banner and sign finishing.
Bringing welding in-house can give businesses greater control over turnaround times, finished quality and production scheduling, particularly when handling repeat banner orders or short-notice work.
Fast and consistent hot wedge welding
The T3 Extreme uses hot wedge technology to create strong, consistent seams across compatible industrial fabrics. It can achieve welding speeds of up to 8 metres per minute, depending on the material, seam width and application.
Controlled heat, pressure and speed help produce repeatable results across multiple jobs, reducing the variation often associated with manual finishing methods.
The T3 Extreme can produce a wide selection of seam types, allowing one machine to support different products and finishing requirements.

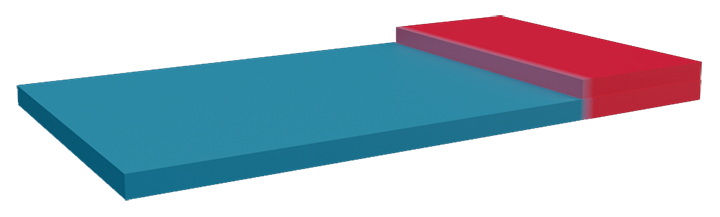

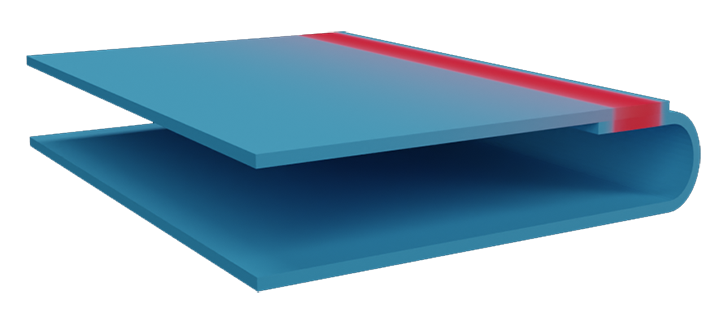

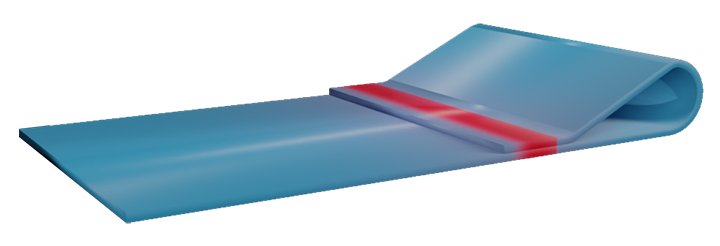

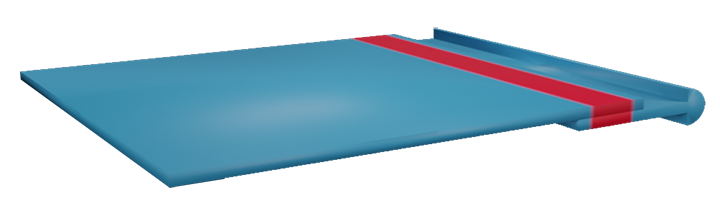

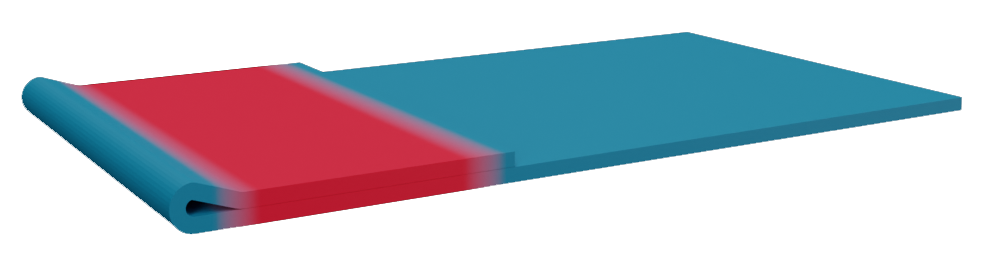

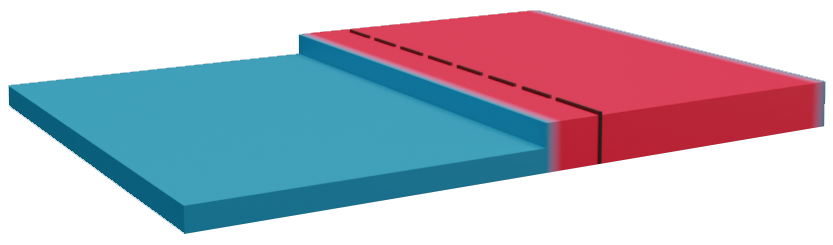

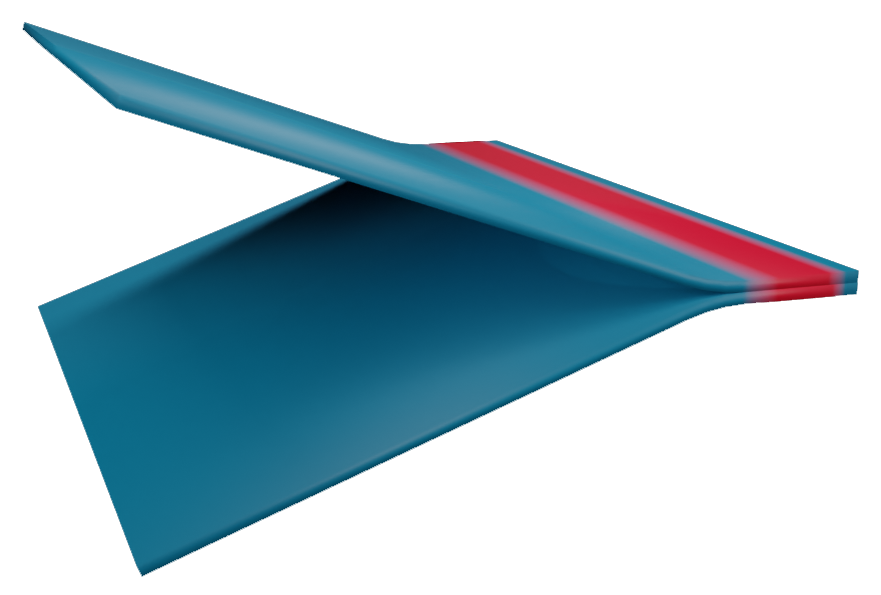

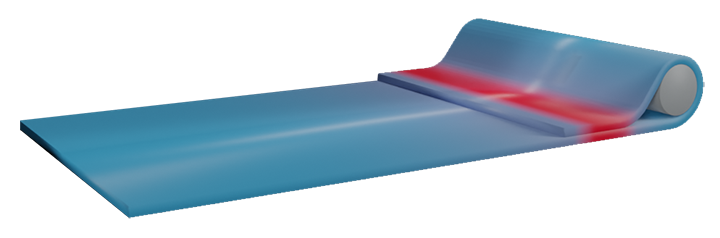

Applications include standard hems, hems with pockets, hems with rope, overlap seams, fin or prayer seams, extrusion beading, hook-and-loop webbing and silicone edge graphics. Guides can be changed to move between different seam configurations, helping operators adapt the machine around the job being produced
Simple everyday operation
Straightforward machine controls help operators manage speed and temperature without unnecessary complexity. Simple wedge adjustments also make it easier to position materials accurately before welding.
This user-friendly design allows the T3 Extreme to be introduced into existing production environments without requiring a large automated finishing line.
Suitable applications
The Miller Weldmaster T3 Extreme is designed for businesses producing banners, signs, awnings, shade and tension structures, tarpaulins, protective covers and tents.
Its range of seam configurations also makes it suitable for businesses looking to expand beyond basic banner hemming into pockets, rope hems, reinforcement webbing and silicone edge graphic finishing.
Optional webbing dispenser

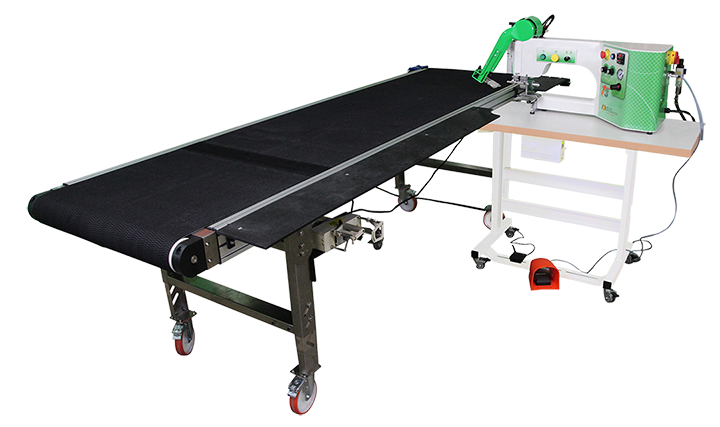

An optional dispenser is available for applying webbing and hook-and-loop materials during production. This can help improve handling and consistency when regularly producing reinforced seams or products that require attachment systems.
Technical specifications
The T3 Extreme operates from a 230V single-phase, 15-amp electrical supply and has an approximate power consumption of 3.5kW. It requires compressed air at 1cfm and 100psi and can reach a maximum operating temperature of 430°C.
The machine has a 406mm throat width and supports seam widths from approximately 10mm to 50mm, although additional guides may be required for some configurations.
Its compact frame measures approximately 406mm wide, 1.2m long and 533mm high, with a total machine weight of around 50kg.
Why choose the Miller Weldmaster T3 Extreme?
The T3 Extreme gives sign makers and print businesses a straightforward route into professional hot wedge welding without committing valuable production space to a larger finishing system.
Its combination of compact construction, adjustable seam guides and multiple finishing configurations makes it a versatile solution for businesses looking to increase productivity, improve consistency and retain more finishing work in-house.
| Small Footprint Desktop Model | T3 |
| Air Requirements: | 1cfm @ 100psi |
| Voltage: | 230 Volts - Single Phase - 15 Amp |
| Power Consumption: | Approx. 3.5kW |
| Maximum Temperature: | 430˚C (806˚F) |
| Throat Width: | 0.406m (16") |
| Seam Width: | 10 -50mm (0.5-2")** |
| Welding Cycle: | Up to 8m per minute* |
| Dimensions: Width: | Width: 0.406m (16"), Length: 1.2m (47"), Height: 0.533m (21") |
| Weight: | 50kg (110lb) |
