Miller Weldmaster T300 Edge
Specifications
- Finish a 4 x 6 banner in under one minute!
- Quick- setting recall with touch screen and recipe storage of 25 memory settings
- Increased product efficiency with dual arms to configure straight seams
- Quick, repeatable, precision- head adjustments
- Available in hot air, hot wedge or both for product versatility
- Multiple seam configurations with quick, easy guide change
- Can be customized to fit your exact specifications
T300 Edge Brochure
Book a demo
Enquire about this product
Book a Demo
See the latest print and finishing technology up close and personal. At our Altham demonstration centre, you’ll get hands-on with leading wide-format printers, cutters, and media.
Whether you're exploring new hardware or testing specific materials, our expert team will guide you through a tailored session that’s focused on your business needs.
Enquire about this product
If you want to enquire about this product, please fill in the form and we will get back to you as soon as possible.

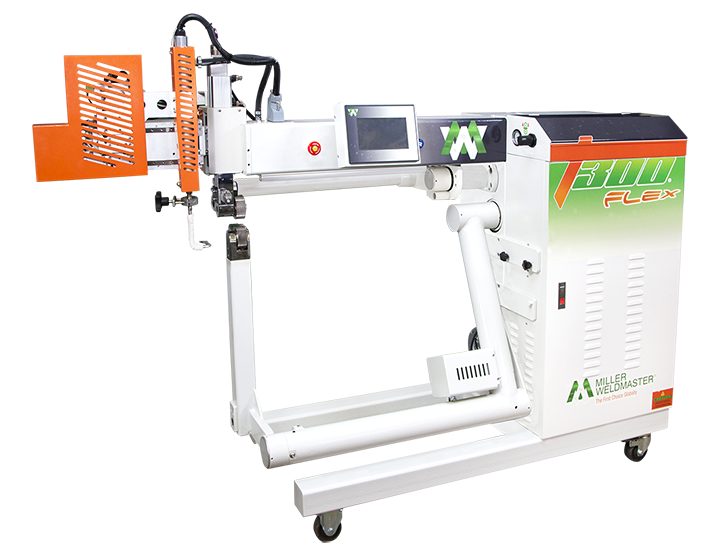

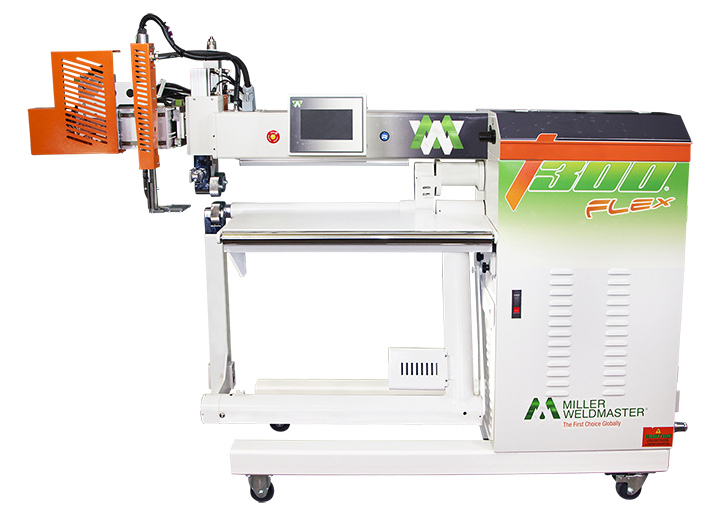

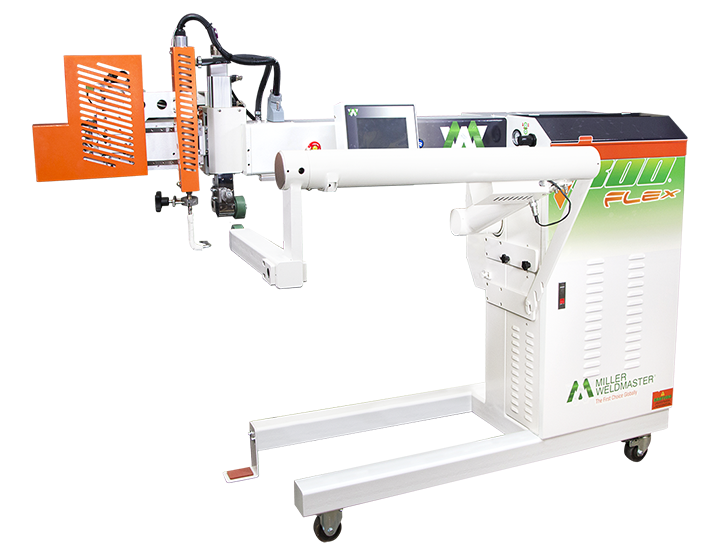

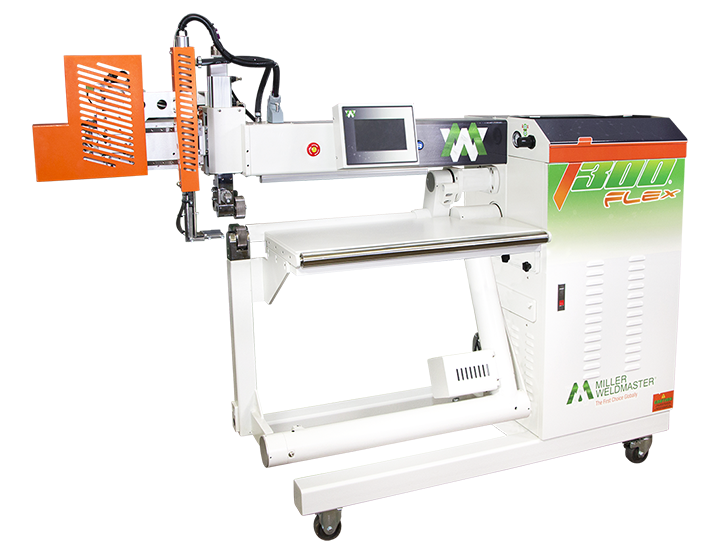

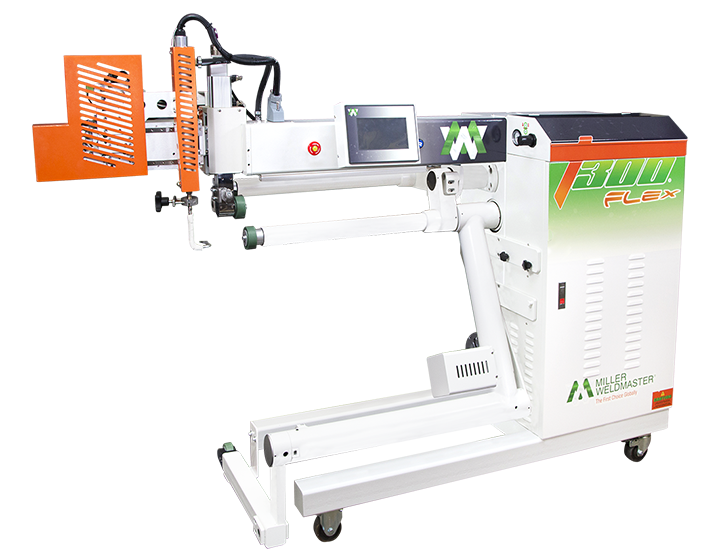

The Miller Weldmaster T300 Edge
Quick Look:
- Produce all seams you need as a banner and sign maker!
- Finish a 4 x 6 banner in under one minute!
- Air Requirements: 100 PSI @2 CFM
- Voltage: 208-240 Volts – Single Phase – 25 Amp | 380-400 Volts – Single Phase – 16 Amp
- Power Consumption: Approx. 6kW
- Maximum Temperature: 450˚C (842˚F)
- Throat Width: 1m (39″)
- Dimensions: Width: 0.6m (23″), Length: 2m (79″), Height: 1.65m (65″)
- Weight: 433kg (955lb)
- Seam Width: 10 -50mm (0.5-2″)**
- Welding Cycle: Up to 30m per minute*
Perfect For:
- Banners, Signs, Shades/Tension Structure, Tarpaulins/Covers, Tents and more!
Seam Types:

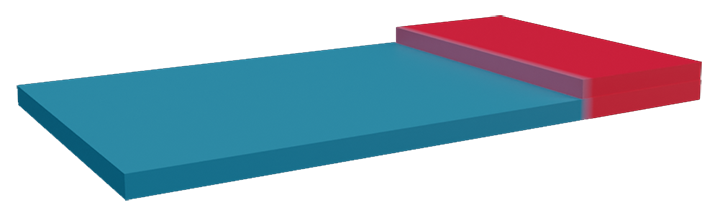

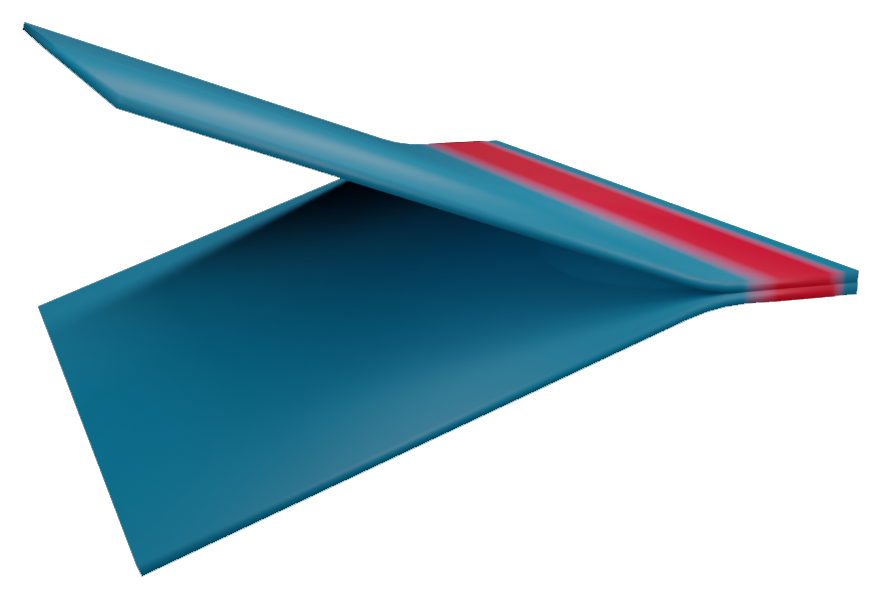

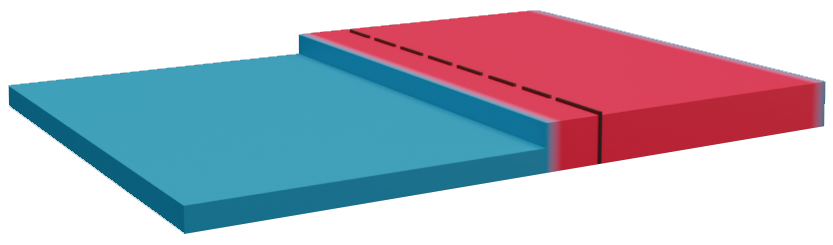

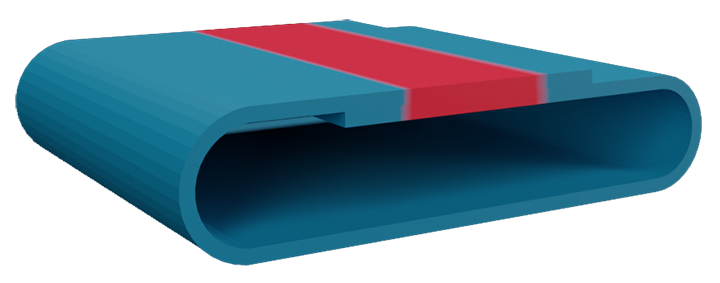

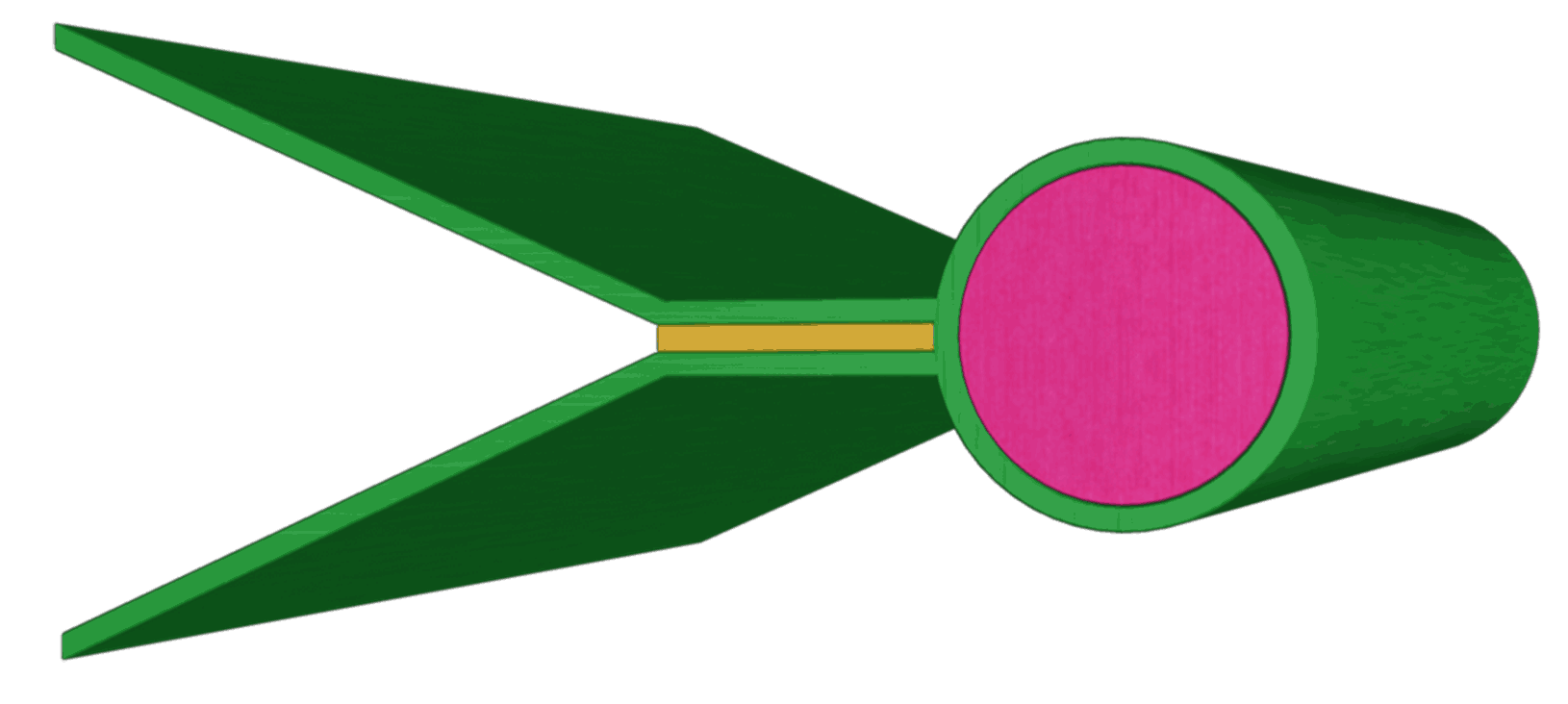

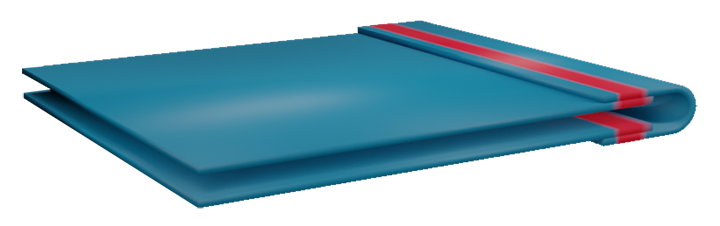

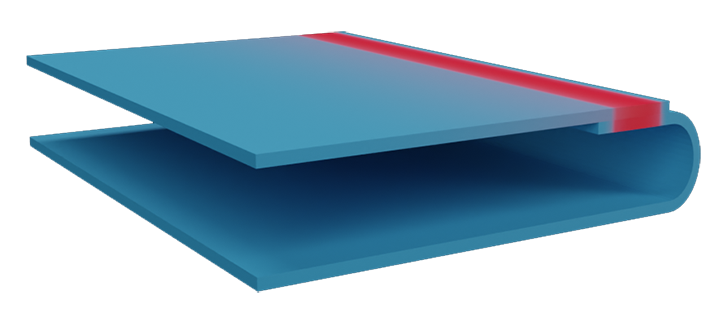

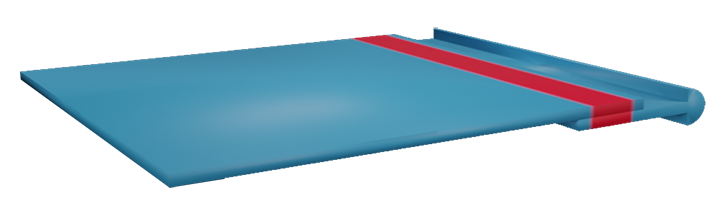

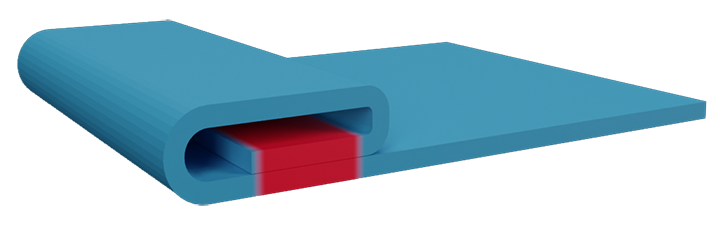

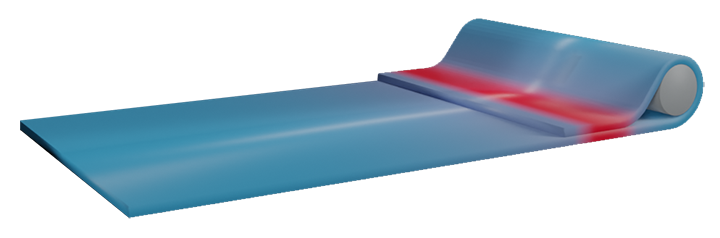

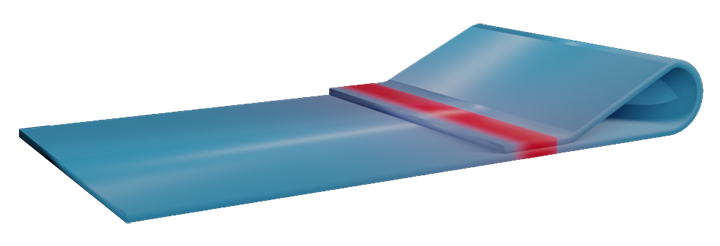

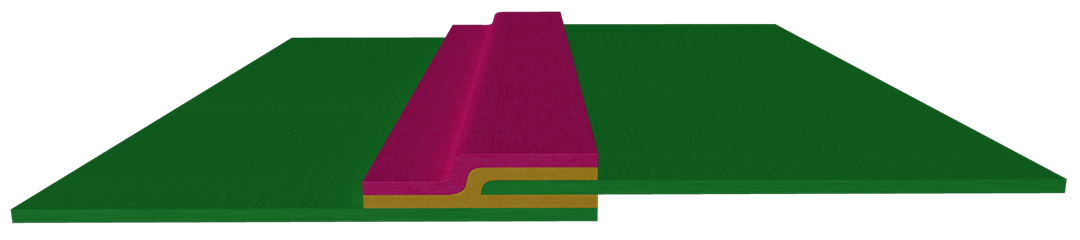

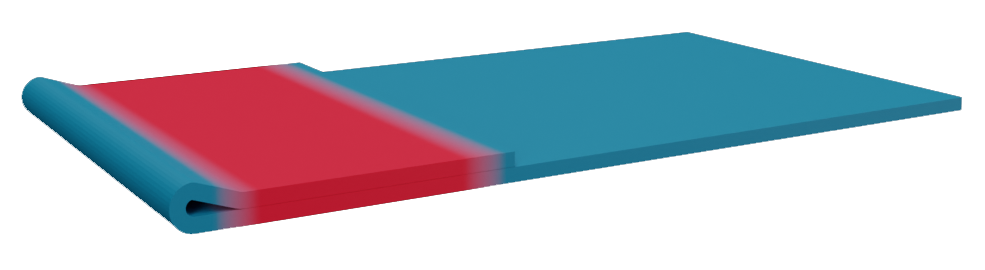

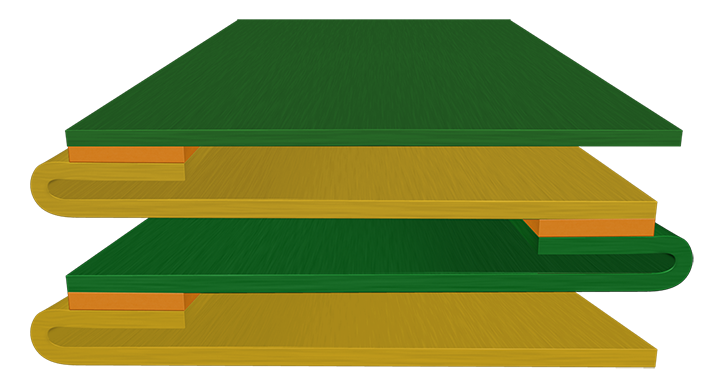

- Fin Prayer Seam, Fold Overlap Hem, Hem with Pocket, Hem with Rope, Extrusion Beading, Velcro Webbing, Webbing – SEG
Email hardware@soyang.co.uk or call us on 01954 232564 for your bespoke pricing!
