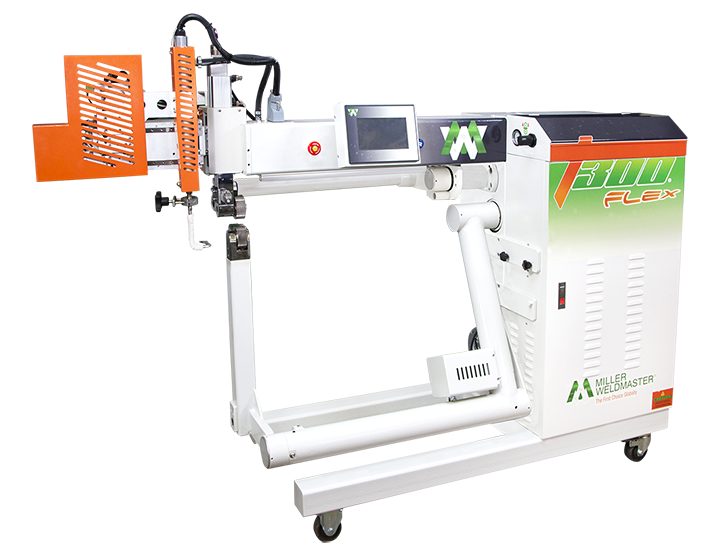

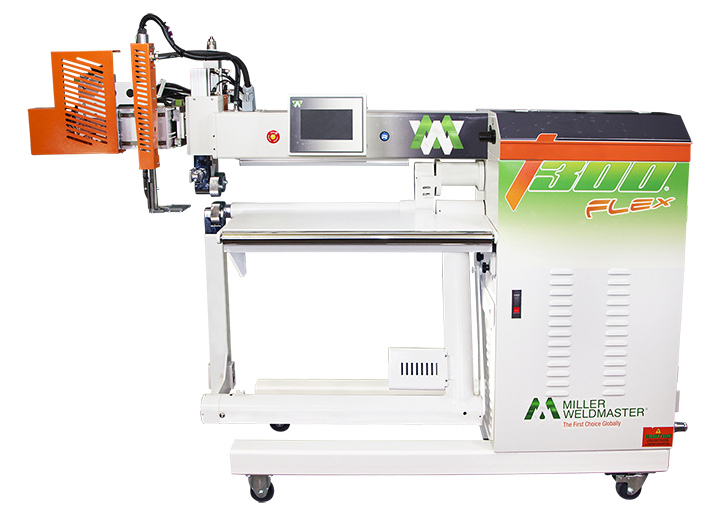

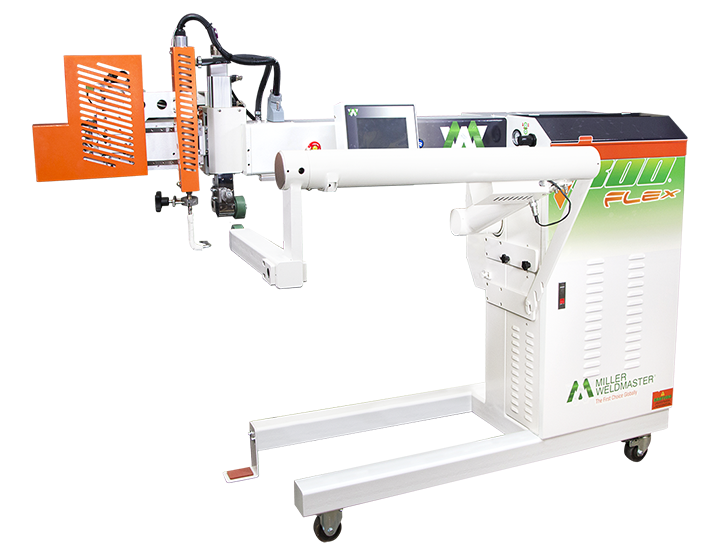

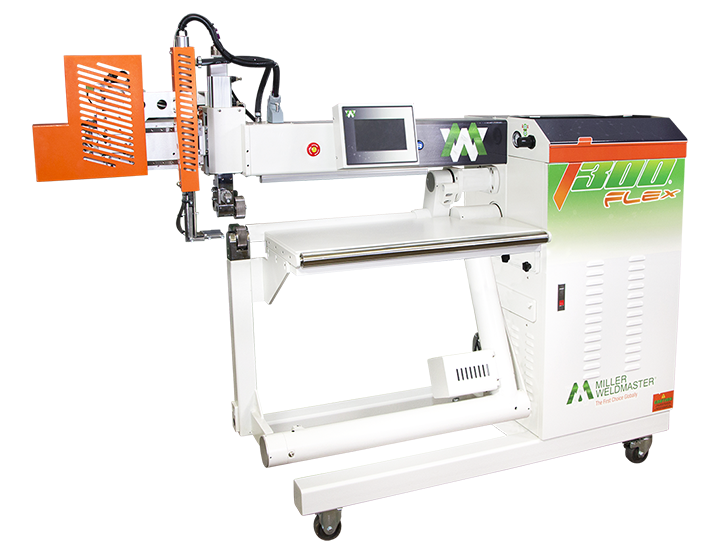

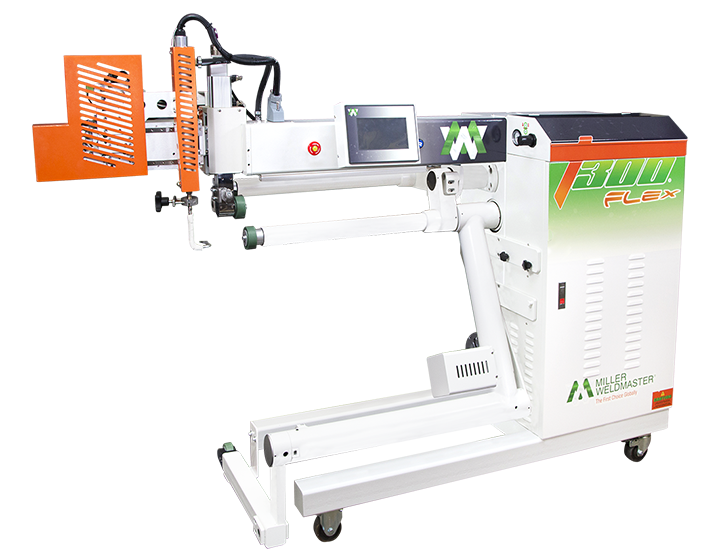

Miller Weldmaster T300 Edge

  • Finish a 4 x 6 banner in under one minute!
  • Quick- setting recall with touch screen and recipe storage of 25 memory settings
  • Increased product efficiency with dual arms to configure straight seams
  • Quick, repeatable, precision- head adjustments
  • Available in hot air, hot wedge or both for product versatility
  • Multiple seam configurations with quick, easy guide change
  • Can be customized to fit your exact specifications

The Miller Weldmaster T300 Edge

Quick Look:
  • Produce all seams you need as a banner and sign maker!
  • Finish a 4 x 6 banner in under one minute!
  • Air Requirements: 100 PSI @2 CFM
  • Voltage: 208-240 Volts – Single Phase – 25 Amp | 380-400 Volts – Single Phase – 16 Amp
  • Power Consumption: Approx. 6kW
  • Maximum Temperature: 450˚C (842˚F)
  • Throat Width: 1m (39″)
  • Dimensions: Width: 0.6m (23″), Length: 2m (79″), Height: 1.65m (65″)
  • Weight: 433kg (955lb)
  • Seam Width: 10 -50mm (0.5-2″)**
  • Welding Cycle: Up to 30m per minute*
Perfect For:
  • Banners, Signs, Shades/Tension Structure, Tarpaulins/Covers, Tents and more!
Seam Types:

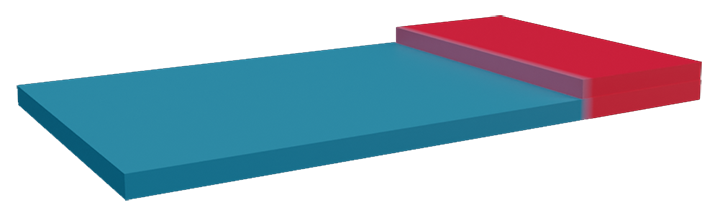

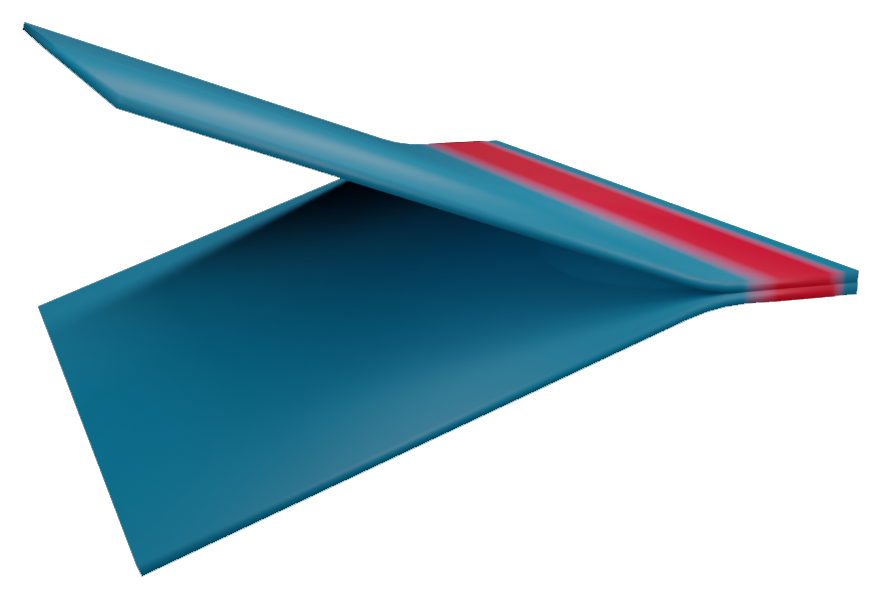

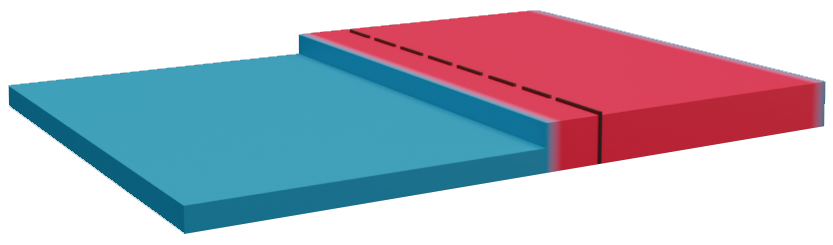

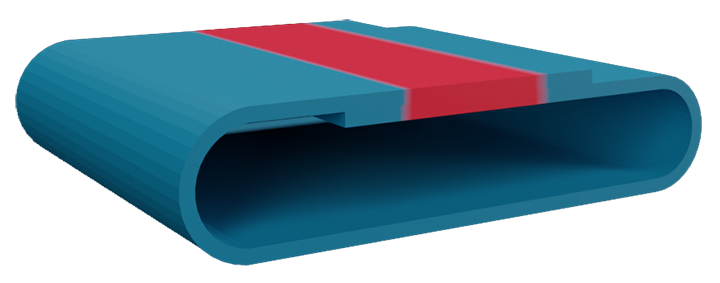

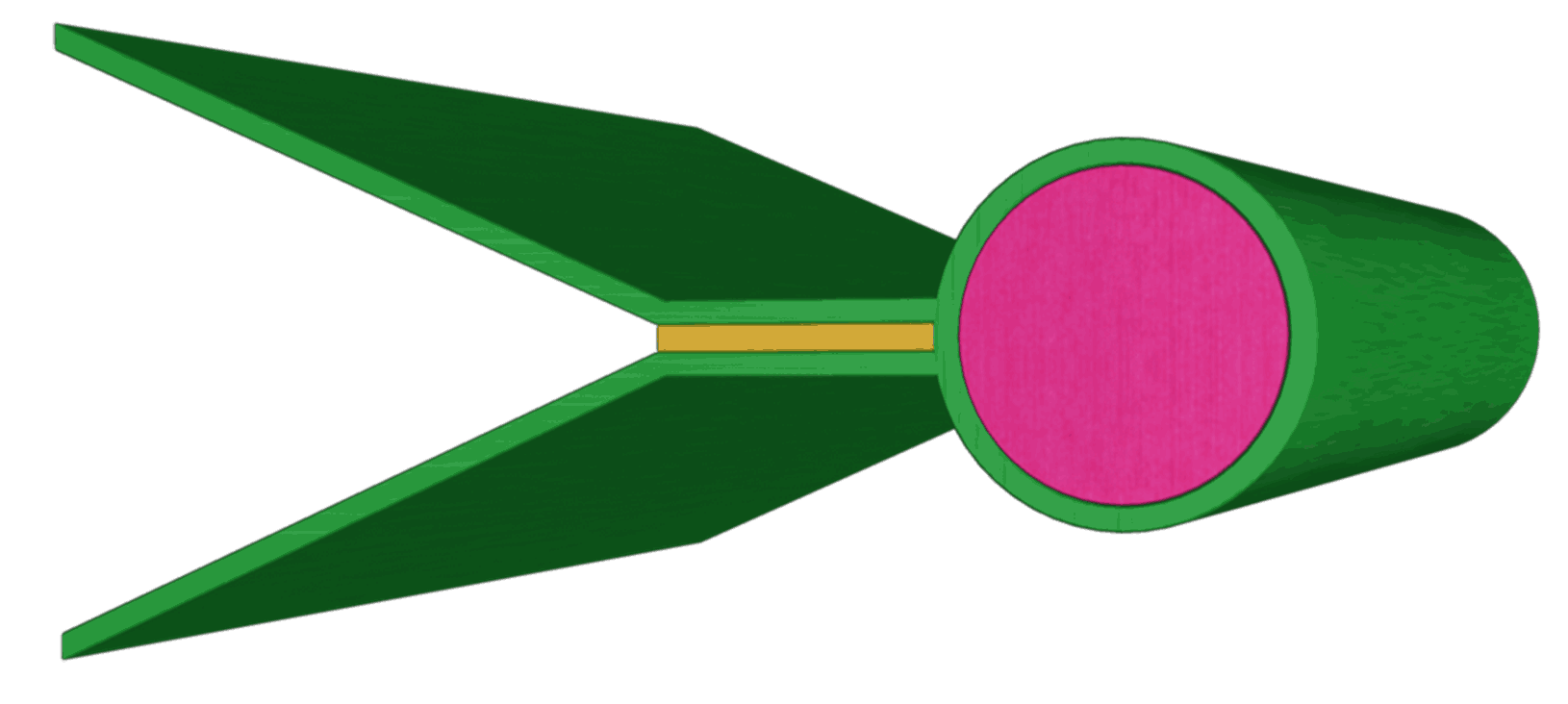

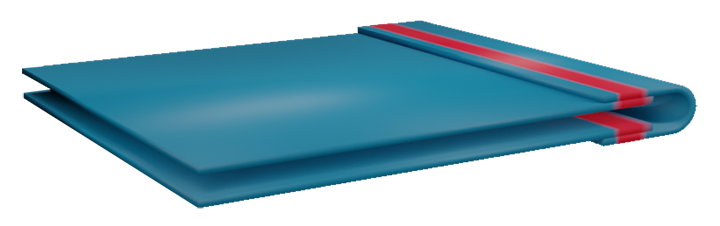

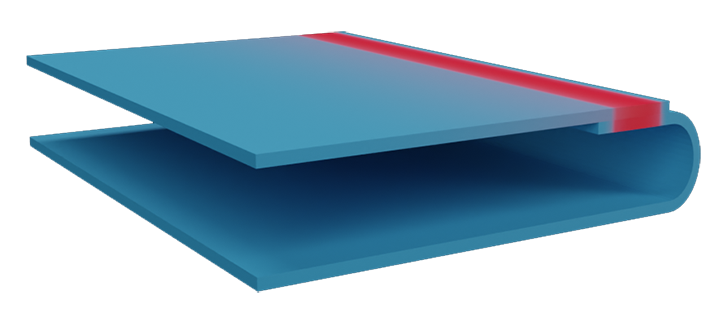

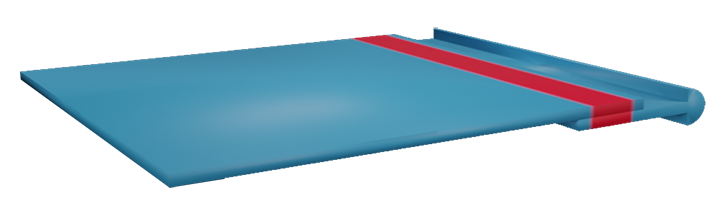

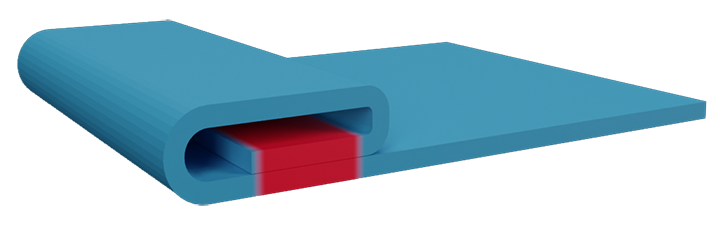

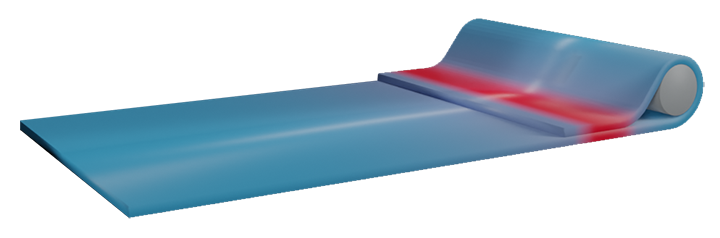

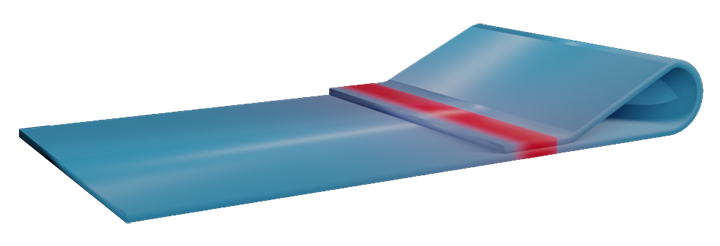

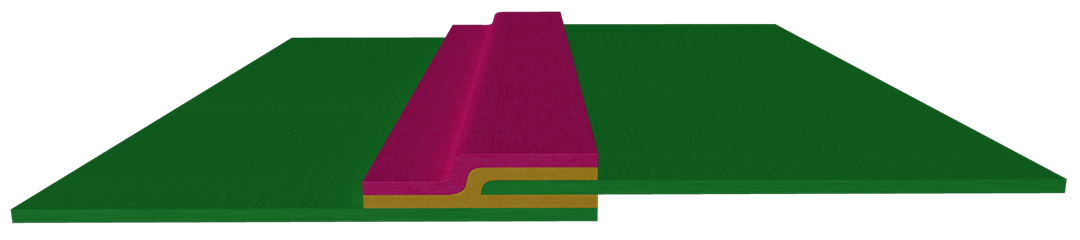

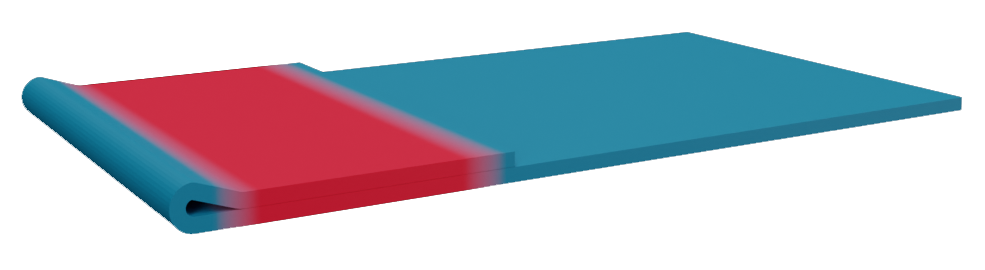

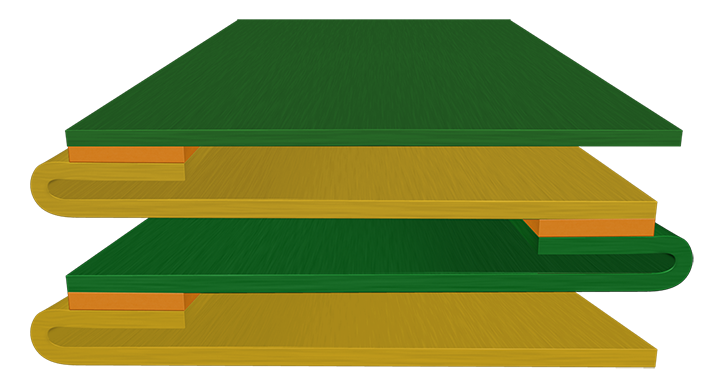

  • Fin Prayer Seam, Fold Overlap Hem, Hem with Pocket, Hem with Rope, Extrusion Beading, Velcro Webbing, Webbing – SEG
