610 x 420mm print area with 250mm bed height, 47mm more height than previous with 20kg max weight limit
On top of CMYK, White, Clear, Light Cyan and Light Magenta, Fluorescent Yellow and Fluorescent Pink now available!
Unlock new revenue opportunities with the optional Kebab MkII L rotary unit, allowing seamless wraparound printing onto bottles, drinkware and cylindrical products.
Using the 330 Print Engine, the UJF200 is a faster machine with just one print head!
Optional camera and belt units enable substantial automation: the camera detects substrate shape and position for automatic image alignment (reducing manual setup), while the belt connects to production conveyors for automated loading, printing, and unloading. Combined, these support unattended operation (including nights/weekends) and help boost overall production efficiency—up to roughly double in real-world scenarios compared with prior models through faster startup and reduced post-print waiting.
The Mimaki UJF200-3042 the latest Flatbed UV in the Mimaki Family. A powerful A3 flatbed UV printer, designed for businesses looking to produce larger, higher-value products with outstanding print quality and increased productivity. Built for promotional products, industrial applications, signage, packaging prototypes and personalised goods, the UJF200-3042 combines Mimaki’s advanced UV print technology with a larger print area, giving you the flexibility to take on bigger jobs without compromising on quality. With support for white ink, clear ink, fluorescent inks, primer and light colours, the UJF200-3042 is ideal for businesses looking to expand application versatility while maintaining premium print standards.

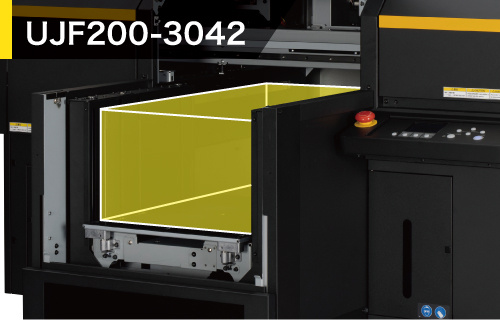

The UJF200-3042 features a generous A3 print area (300mm x 420mm) and supports materials up to 250mm thick, allowing you to print directly onto a wide variety of products and substrates.
From larger promotional items and bespoke packaging through to industrial components and premium retail products, the expanded bed size gives you more freedom to produce profitable, high-value applications.
Typical applications include:
Compatible inks include rigid (ELH-100) and flexible (ELS-120) UV-curable formulations plus primer and the new fluorescent options, supplied in bottles.
| Printhead | On-demand piezo printhead | |
| 1x 330 Engine Print Head | ||
| Print resolution | 600 dpi / 900 dpi / 1,200 dpi / 1,800 dpi | |
| Maximum printable area | Width：300m | |
| Length：420mm (A3 size) | ||
| Ink | Type/Color | Hard UV curable ink: ELH-100 (C, M, Y, K, Lc, Lm, W, Cl) |
| Flexible UV curable ink: ELS-120 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| Fluorescent UV curable ink: EFS-150 (Fp, Fy) *1 | ||
| Primer: PR-200 *2 | ||
| Capacity | 1L bottle (ELH-100, ELS-120, EFS-150, PR-200) | |
| PR-200 (Primer) | ||
| Media | Thickness | 250 mm (9.8") or less |
| Weight | 20 kg (44.1 lb) or less | |
| Certifications | VCCI class A / FCC class A / ETL IEC 62368-1 / | |
| CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM | ||
| Interface | Ethernet 1000BASE-T, USB2.0 | |
| Noise level | Standby mode: 55dB or less (FAST-A, measured1 m away from the source) | |
| Continuous operation: 65 dB or less | ||
| Discontinuous operation: 70 dB or less | ||
| Power supply | Single-phase AC100-240V±10%, 50/60Hz±1Hz | |
| Power consumption | Max. : 450 W or less / Standard: 250 W / Min.: 4.5 W or less (sleep) | |
| Operational environment | Temperature | 20 - 30 degC |
| Humidity | 35 - 65％Rh (Non condensing) | |
| Recomended Temperature | 20 - 25 degC | |
| Temperature change | ±10 degC /h or less | |
| Dust level | Equivalent to a general office floor level | |
| RIP software | RasterLink7 (Bundled) | |
| Dimensions (W × D × H) *1 | 1,380 x 1,166 x 798 mm (54.3 x 45.9 x 31.4") | |
| Weight | 171kg (377.0 lb) |
