See the latest print and finishing technology up close and personal. At our Altham demonstration centre, you’ll get hands-on with leading wide-format printers, cutters, and media.
Whether you're exploring new hardware or testing specific materials, our expert team will guide you through a tailored session that’s focused on your business needs.
If you want to enquire about this product, please fill in the form and we will get back to you as soon as possible.
Expand application opportunities with the ability to print directly onto materials up to 50 mm thick, suitable for signage, décor, furniture, glass and more.
Designed to support photo-quality printing on surfaces with height differences up to 1.8 mm, helping maintain print consistency across varying materials.
The 2100 mm print width provides flexibility across a broad range of rigid and roll media applications from one machine
A true hybrid UV printing platform, allowing production across both rigid materials and roll-fed media, including vinyl and banner applications

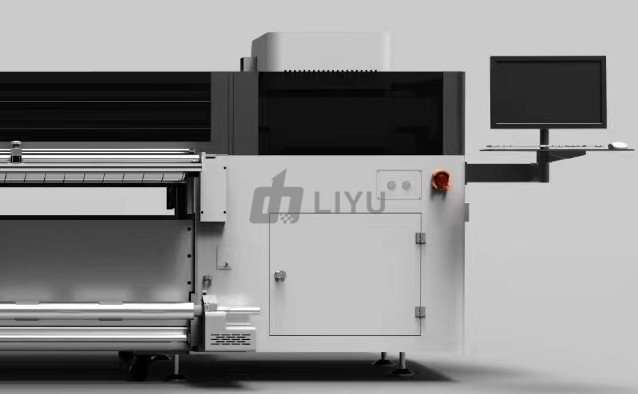

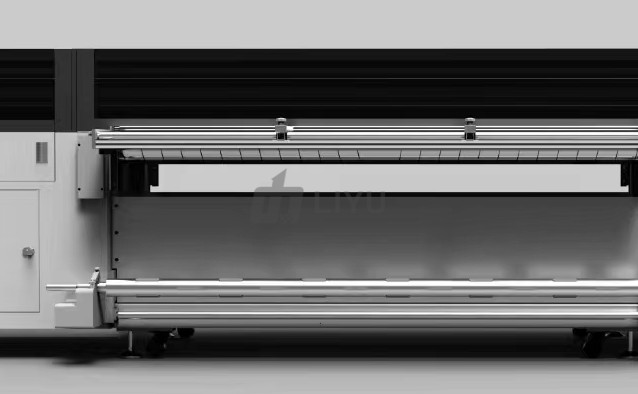

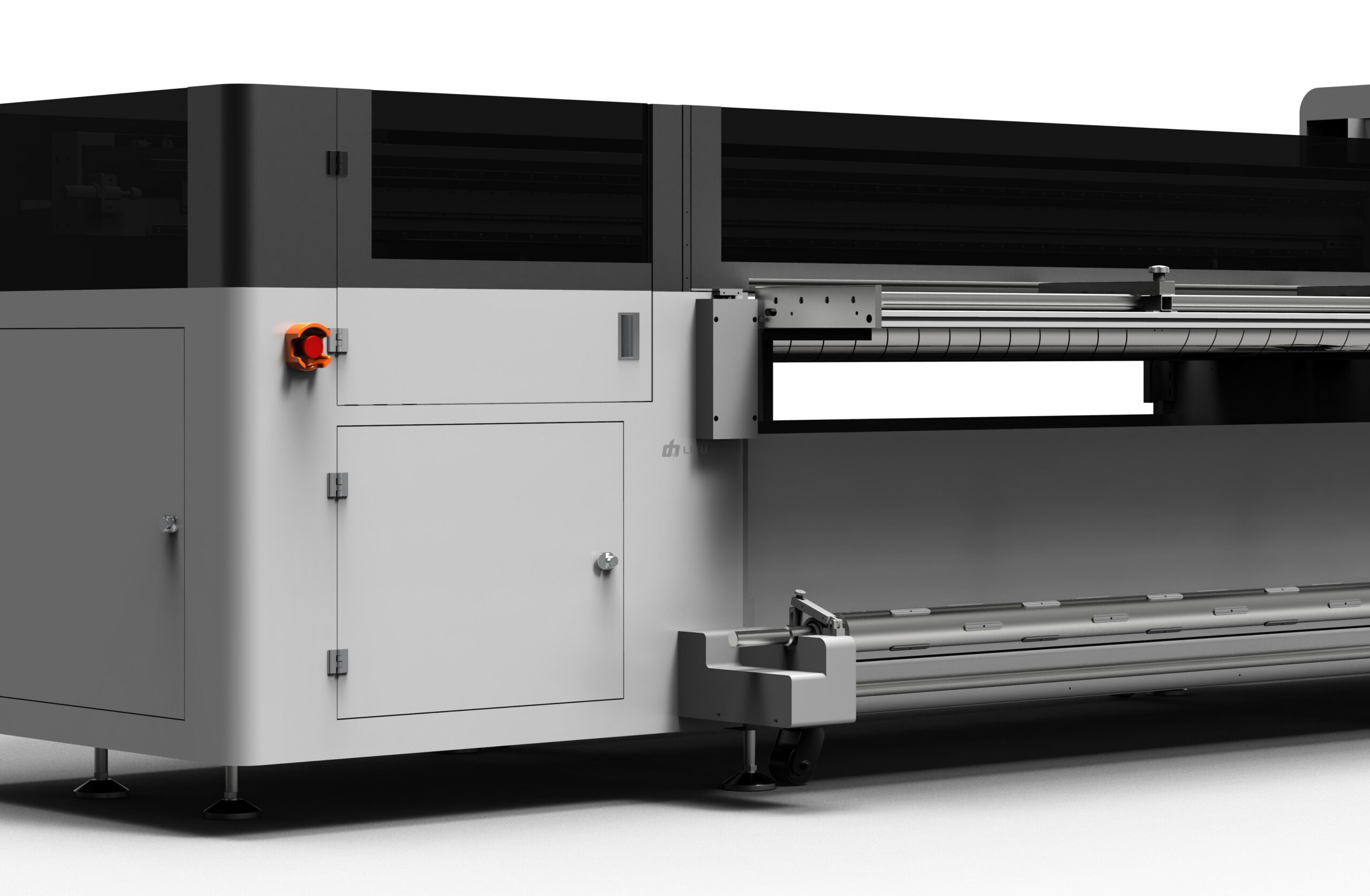

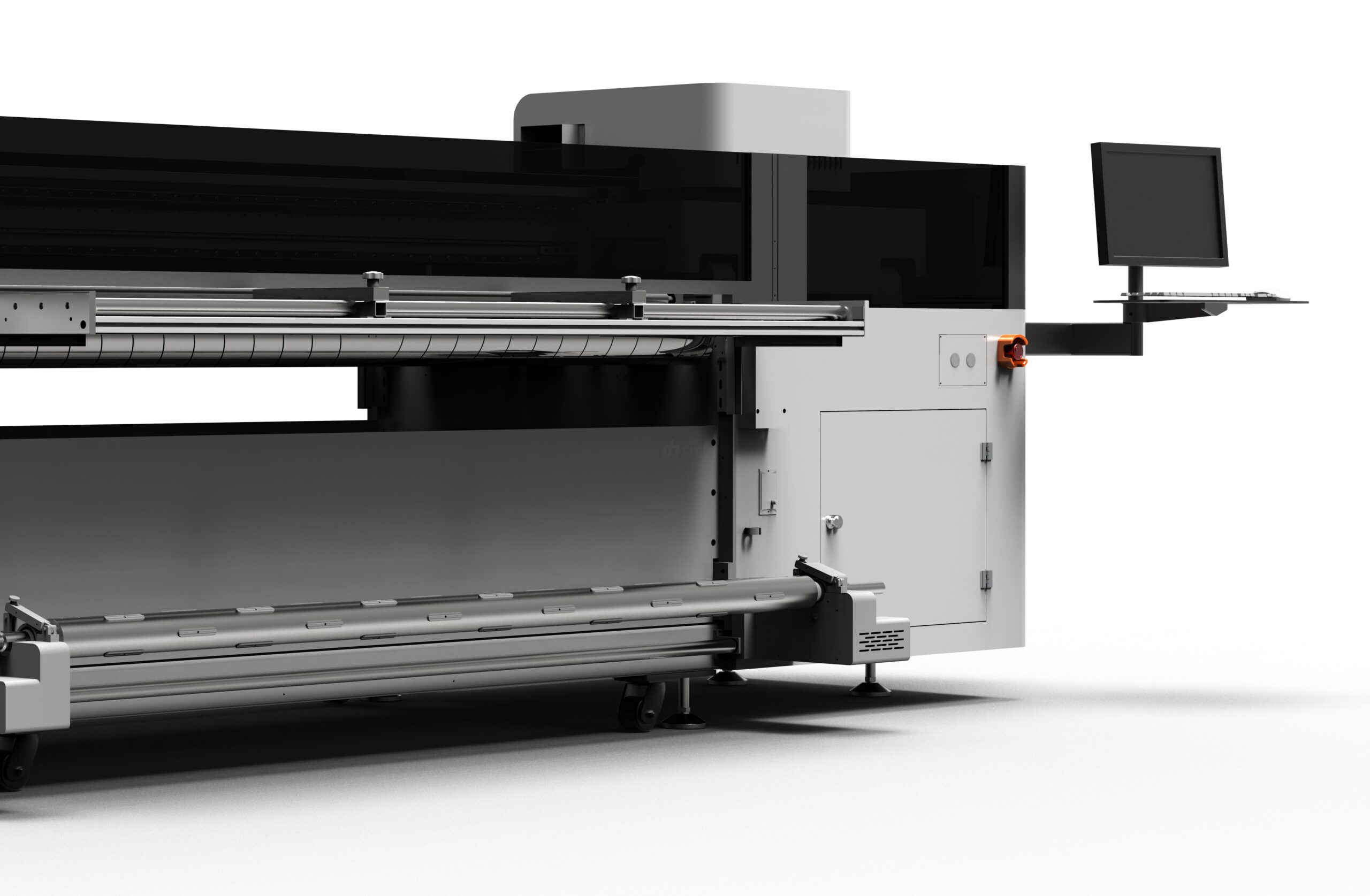

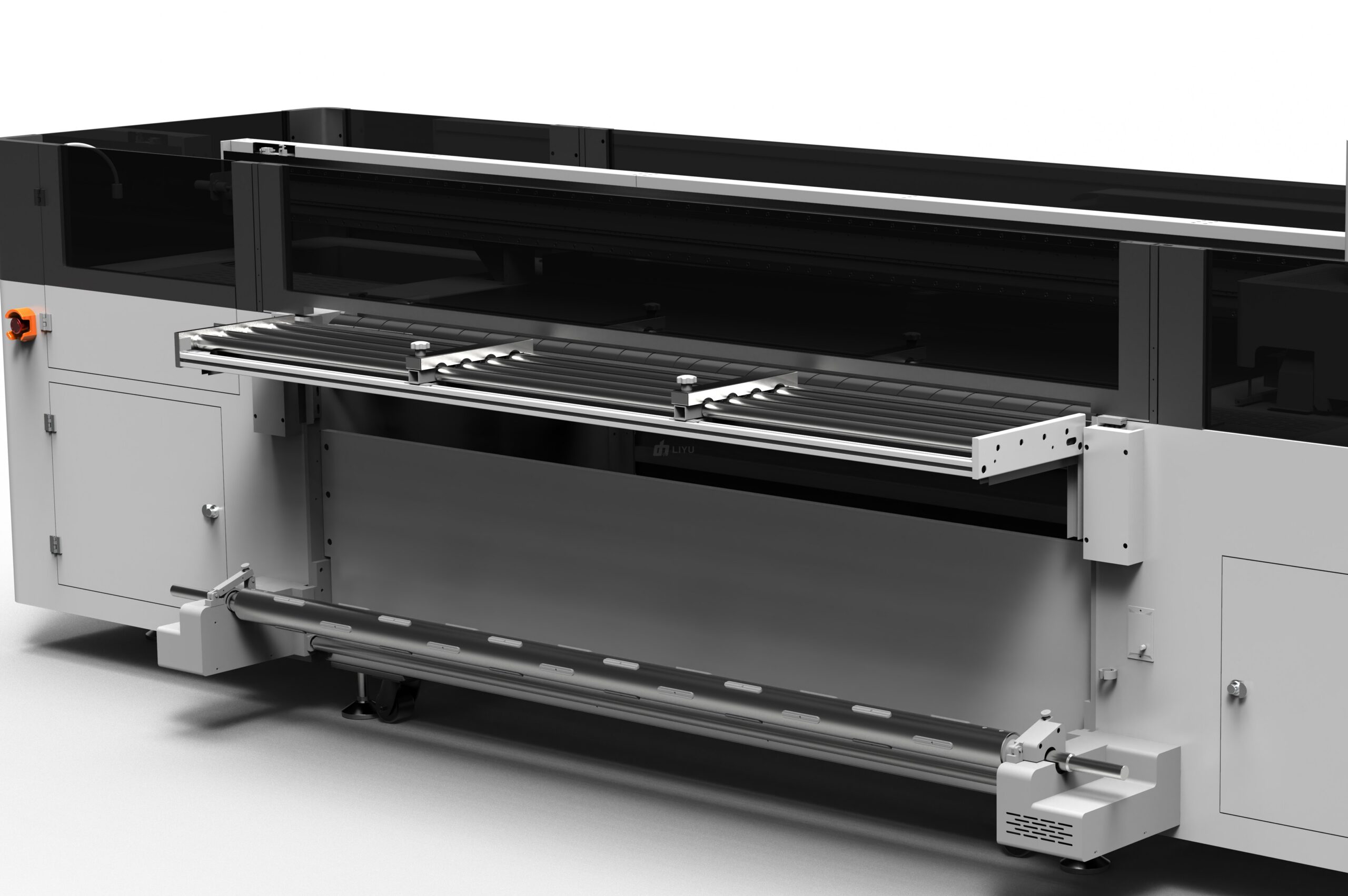

The Xline Hybrid UV Printer has been developed to deliver flexible, high-quality UV print production across both rigid substrates and roll media, helping print businesses expand application capabilities without compromising on print quality.
Designed for industries including advertising, promotion, decoration, furniture, glass and textile production, the Xline Hybrid enables users to print across a wide variety of materials and applications from a single platform. Whether printing directly onto rigid boards or roll-fed materials such as vinyl, banner and flexible media, the Xline Hybrid provides the versatility required for modern print environments.
Powered by Ricoh Gen6 printheads, the Xline Hybrid has been developed to support accurate ink placement, dependable production performance and consistent print quality across a broad range of applications. Combined with 5 pl droplet technology, the printer is designed to produce sharp detail and smooth gradients across both rigid and roll media
Supporting materials up to 50 mm thick, the Xline Hybrid is designed to handle substrates with varying properties and thicknesses, while the integrated local vacuum system helps keep materials securely positioned during production for reliable print consistency. With production speeds of up to 80 m²/h, the Xline Hybrid combines productivity and precision in one powerful hybrid UV solution.
| Print Heads | Ricoh Gen6 |
| Print Resolution | 2400 DPI |
| Print Head Drop Volume | Gen6 5Pl. |
| Printhead Quantity | 16 (Max.) |
| Ink Config | CMYK + White + Lc + Lm + Varnish |
| Ink Curing Type | UV - LED |
| Print Speed Up to | 80 m2/h |
| Max Media Thickness | 50 mm |
| Print Width | 2100 mm |
| Machine Weight | 1300 kg. |
| Machine Size | 4394mm x 1675mm x 1450mm |
| Machine Power Requirements | 230v (+/-) 10% / 40A / 50HZ / 60HZ |
