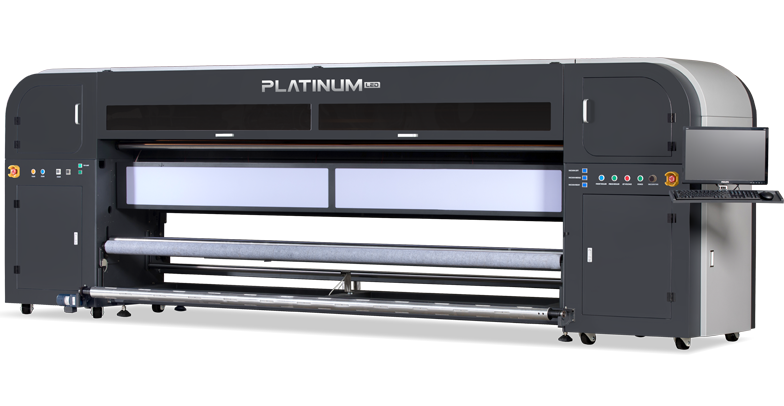

Built for high-efficiency roll production.
The Platinum PCT LED platform is developed for industrial roll-to-roll printing environments where production stability, operational efficiency, and consistent print quality are essential. Designed for 3.2-meter flexible media production, the system delivers reliable performance across a wide range of commercial and industrial printing applications.
Engineered around continuous production workflows, the PCT LED combines stable media transport, precision motion control, and efficient industrial operation to support demanding high-volume production environments. Its LED curing architecture helps improve workflow efficiency while maintaining strong color performance and dependable production consistency.
Engineering Philosophy
Three core principles define the Platinum PCT LED platform:
Efficient Roll Production — optimized for stable 3.2-meter roll-to-roll printing across flexible media applications.
Reliable Industrial Operation — durable mechanical architecture engineered for continuous production environments.
Stable Workflow Performance — precision media handling and controlled material transport designed for dependable daily productivity.
Application Range
The Platinum PCT LED series is developed for applications including:
- Billboard and outdoor advertising production
- Roll banner and signage applications
- Exhibition and retail graphics
- Backlit and frontlit visual communication projects
- General flexible media production
Color Performance
Supporting advanced color configurations, the PCT LED platform delivers vibrant color reproduction, smooth gradients, sharp detail output, and consistent print quality across high-volume flexible media applications.
LED Production Technology
The integrated LED curing system is engineered to support efficient production workflows with stable curing performance, helping improve operational consistency across demanding industrial printing environments.
Industrial Service Architecture
Every Platinum PCT LED system is supported through Platinum’s global technical service structure including preventive maintenance programs, technical assistance, remote diagnostics, and worldwide spare-part accessibility.
The Platinum PCT LED is engineered for production environments where efficient roll-to-roll operation, dependable workflow stability, and consistent large-format output are essential to industrial productivity.
Technical Specifications
| Color Scale | CMYK + Lc + Lm + W |
| Drop Volume | Konica 13Pl. / Gen5 - 7Pl. / Gen6 - 5Pl. |
| Drying System | LED Curing |
| Ink Types | UV - LED |
| Machine Size | 1150 mm x 5400 mm x 1650 mm |
| Machine Weight | 1450 kg. |
| Power Requirements | 230v (+/-) 10% 22A / 50HZ |
| Print Heads | Konica Minolta 1024A - Ricoh Gen5/Gen6 |
| Print Resolution | Konica 2880 DPI / Gen5-6 2400 DPI |
| Print Speed Up to | 120 m2 / h |
| Print Width | 3200 mm |
| Printhead Quantity | 14 (Max.) - 10 (Max.) |
| RIP Software | PhotoPrint - Caldera (Opt.) |
